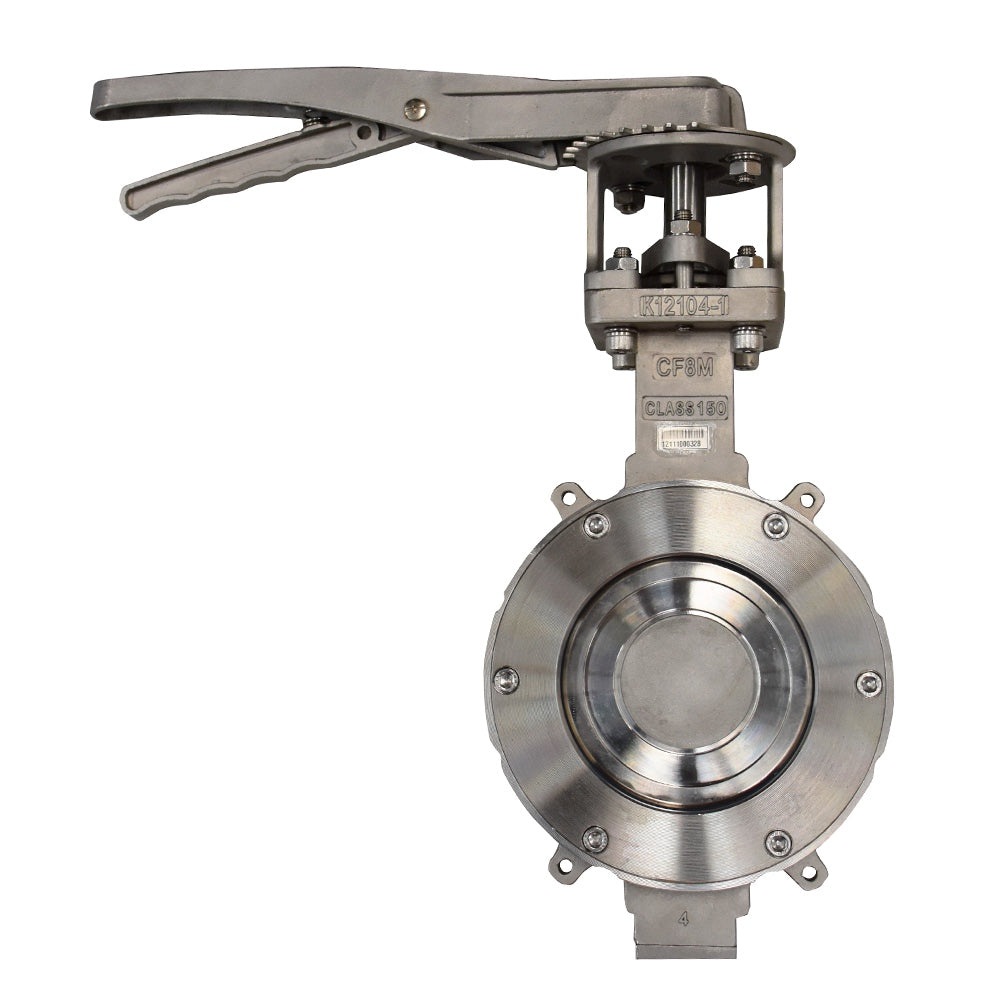

Class 150 Double Eccentricity High Performance Butterfly Valve
Pickup availability could not be loaded

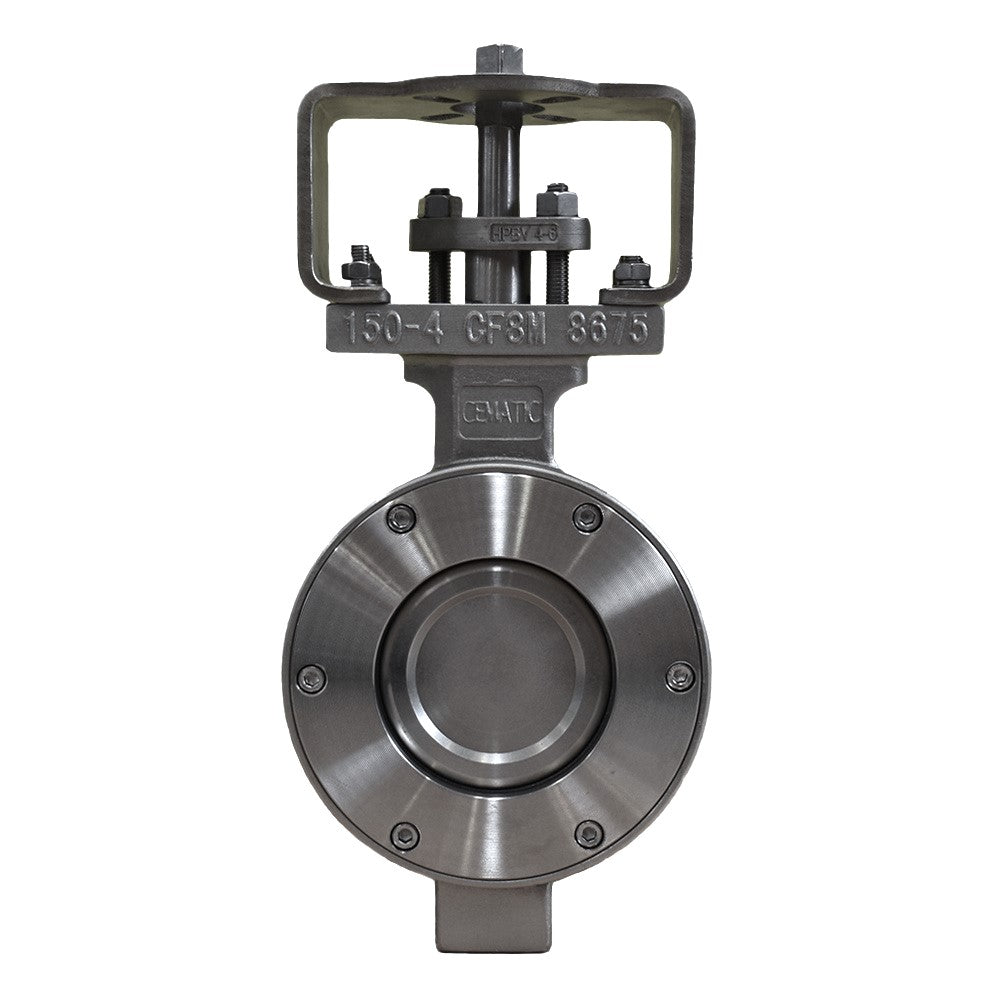

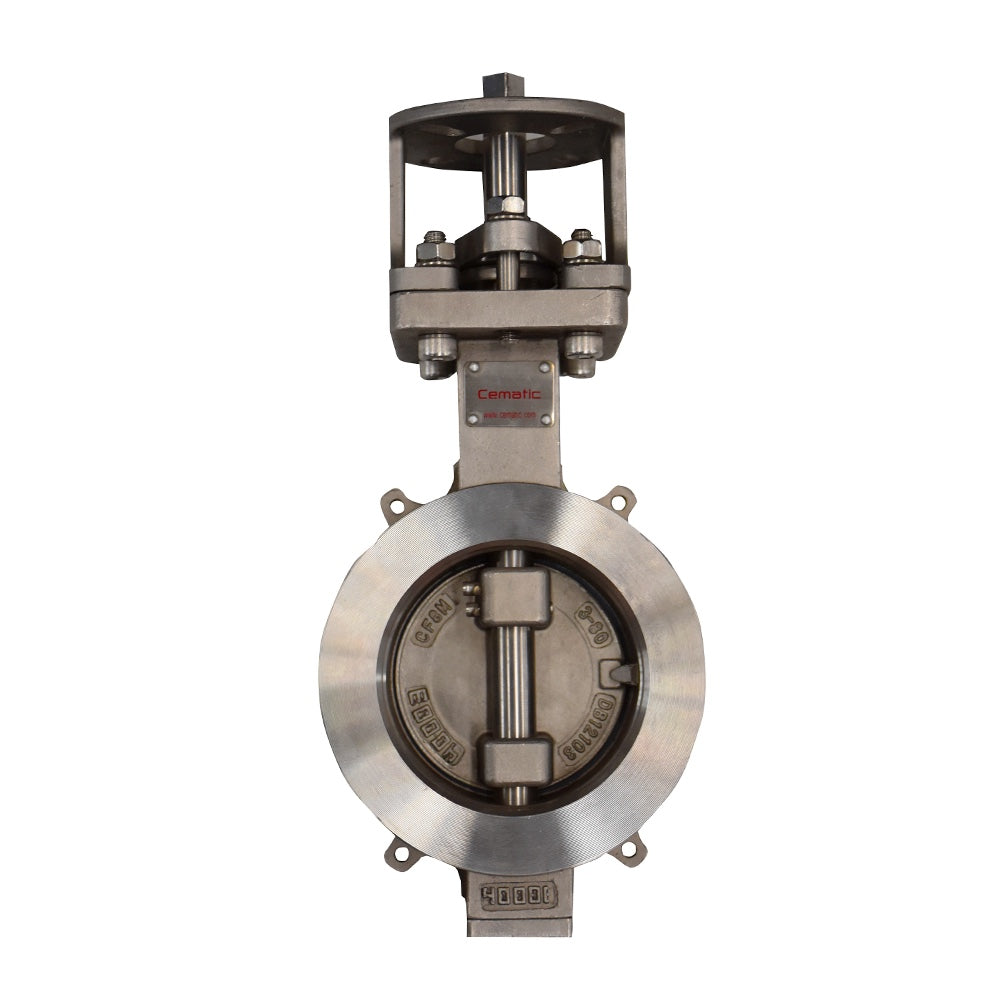

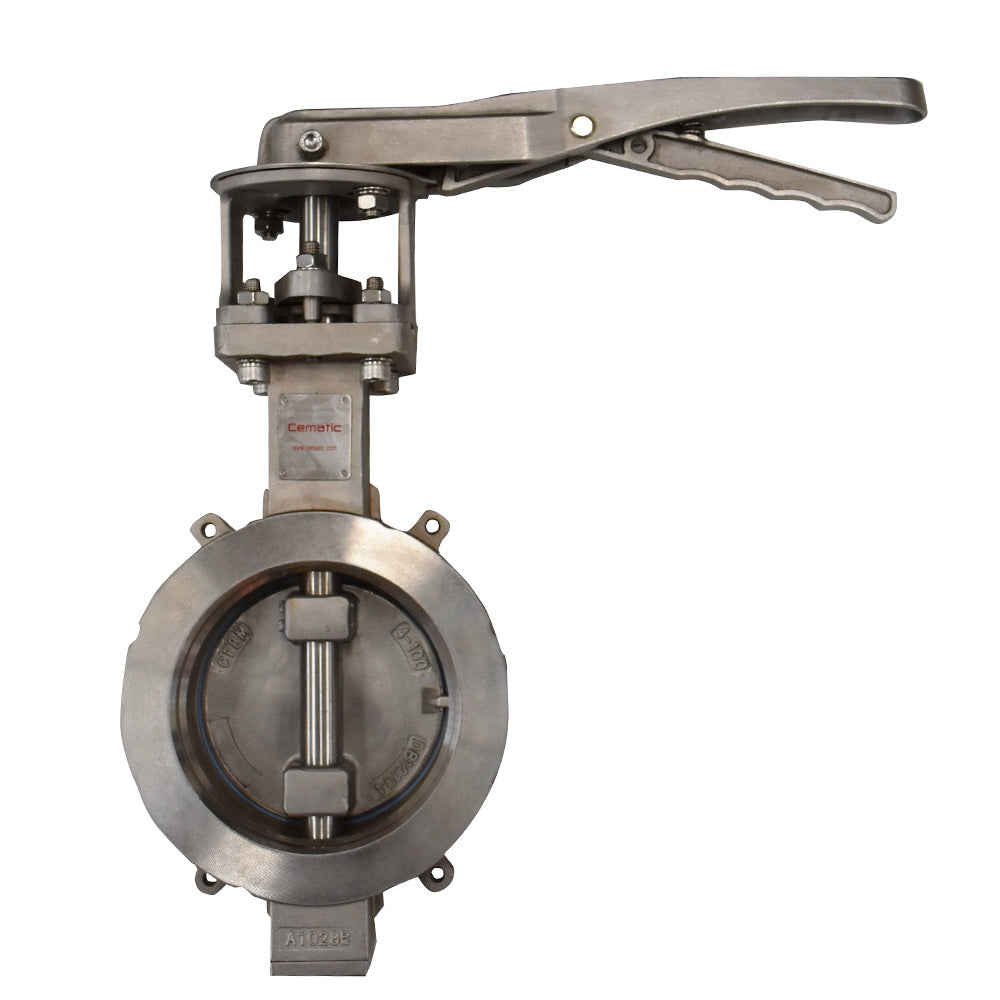

High Performance Butterfly Valve — Double Eccentric, CF8M SS316 Body and Disc, TFM1600 Seat, API 609 ANSI 150
The high performance double eccentric butterfly valve is technically different from all conventional butterflies in the catalog in one fundamental aspect: thanks to its double eccentric geometry, the disc immediately separates from the seat at the start of opening and does not touch the seat again until the very last moment of closing — eliminating the continuous sliding between disc and seat that is the main cause of wear in conventional center-shaft butterflies. The result is a valve with a significantly longer seat life, lower operating torque in the intermediate position, and more precise sealing in the closed position.
The CF8M (SS316) body and disc, the TFM1600 seat (modified high-density PTFE), and the 17-4 PH stem (precipitation-hardened stainless steel) make up the highest performance material combination in the Cematic butterfly family. Designed in accordance with API 609 — the most demanding standard for industrial butterfly valves — for chemical, petrochemical, Oil & Gas services, and process fluids where standard butterflies are not sufficient. Diameters from 2" to 10" in stock; up to 18" by special order.
Double Eccentricity — Why It Is Different from a Conventional Butterfly Valve
In a conventional center-shaft butterfly valve (zero eccentricity), the pivot shaft passes exactly through the center of the disc. When opening and closing, the edge of the disc continuously slides over the entire seat perimeter during the 90° stroke. This continuous sliding:
- Generates friction and wear in every opening and closing cycle
- Requires higher operating torque throughout the stroke
- Wears the seat evenly around the entire perimeter over time
In the double eccentric butterfly valve, the pivot shaft is offset in two directions relative to the center of the disc:
- First eccentricity (axial): The shaft is offset laterally relative to the seat plane — when rotating, the disc does not describe a perfect circle but an elliptical path that causes it to immediately separate from the seat at the start of opening.
- Second eccentricity (radial): The shaft is also offset perpendicular to the pipe axis — reinforcing the seat separation effect and improving force distribution during closing.
The practical result: the disc only touches the seat at the final moment of closing — not during the stroke. Wear is concentrated at that single moment of final contact, instead of being distributed along the 90° stroke as in the conventional butterfly valve. The seat life increases proportionally.
The TFM1600 Seat — Modified High-Density PTFE
The TFM1600 (also known as modified PTFE or high-density PTFE) is a fluoropolymer superior to conventional PTFE in the most critical properties for high-performance valve seats:
- Higher density and lower permeability: TFM1600 has a denser molecular structure than conventional PTFE — lower permeability to gases and fluids, which improves seat tightness especially in low differential pressure gas service where standard PTFE can have micro-leakage.
- Lower tendency for cold flow (creep): Conventional PTFE has a tendency to permanently deform under load at temperature — a phenomenon called cold flow or creep. TFM1600 has a significantly lower tendency for creep, maintaining sealing force for longer and through more operating cycles.
- Higher resistance to fine abrasion: With metal backing in the double eccentric design, TFM1600 resists abrasion from fine suspended particles better than a soft elastomer (EPDM, Viton) — which wears out faster due to particle abrasion.
- Practically universal chemical resistance: TFM1600 inherits the chemical compatibility of PTFE — resistant to acids, alkalis, solvents, hydrocarbons, and practically any industrial fluid at temperatures up to 180 °C.
- Replaceable seat: The TFM1600 seat can be replaced in the field when worn — without replacing the entire valve.
The 17-4 PH Stem — The Highest Mechanical Strength in the Range
The 17-4 PH stainless steel stem (UNS Grade S17400, also known as 630) is a precipitation-hardening stainless steel — a type of stainless steel that combines the mechanical strength of tool steel with the corrosion resistance of stainless steel. Its properties:
- Tensile strength: 1,000–1,100 MPa in H900 condition — three times higher than standard SS316 (515 MPa)
- Corrosion resistance: Similar to SS304 in non-chlorinated environments — sufficient for the process fluids where this valve is specified
- Fatigue resistance: The higher mechanical strength of 17-4 PH provides greater resistance to fatigue from repeated cycles — critical in high-performance valves with frequent opening and closing cycles
- Why not SS316 or SS420: In high-performance double eccentric valves, the stem withstands higher torsion and bending stresses than in a conventional centered butterfly valve. 17-4 PH provides the necessary mechanical safety margin for these stresses without increasing the stem diameter — maintaining the compact valve design.
Conventional Butterfly Valve vs. Double Eccentric — When to Specify Each
| Criterion | Double Eccentric HP ← This Product | Conventional Butterfly Valve (zero eccentricity) |
|---|---|---|
| Seat wear per cycle | ✅ Minimal — disc only touches the seat when closing | Continuous — disc slides over seat throughout the stroke |
| Seat life | ✅ Significantly longer | Shorter in high-frequency services |
| Operating torque in intermediate position | ✅ Lower — disc separated from seat | Higher — disc in continuous contact |
| Seat | ✅ TFM1600 — modified PTFE, higher density and lower creep | EPDM, NBR, or Viton — elastomer |
| Stem material | ✅ 17-4 PH — higher mechanical strength | SS420 or standard SS304 |
| Design standard | ✅ API 609 — more demanding | ISO 5752 / API 609 depending on model |
| Maximum temperature | ✅ 180 °C — TFM1600 resists | 110–150 °C depending on seat |
| Service with gas at low differential pressure | ✅ TFM1600 — lower permeability than standard PTFE | EPDM better than PTFE at low differential pressure |
| Relative cost | Higher — premium materials, more complex design | ✅ Lower — for standard services |
| First choice for | ✅ High cycle frequency, aggressive chemicals, petrochemicals, API 609 required | Water, HVAC, irrigation, low-frequency services |
Construction Materials
| No. | Component | Material |
|---|---|---|
| 1 | Body | CF8M (SS316) — cast equivalent of 316 stainless steel |
| 2 | Seat | TFM1600 — modified high-density PTFE, replaceable |
| 3 | Stem | 17-4 PH (UNS S17400) — precipitation-hardened stainless steel |
| 4 | Disc | CF8M (SS316) |
| 5 | Retainer flange | SS316 |
| 6 | Bonnet | CF8 (SS304) |
Technical Specifications
- Type: Double eccentric wafer butterfly valve (high performance butterfly valve)
- Design standard: API 609
- Face-to-face: API 609
- Actuator mounting: ISO 5211
- Flange: ANSI B16.5 Class 150
- Inspection and testing: API 598
- Body material: CF8M (SS316)
- Disc: CF8M (SS316)
- Seat: TFM1600 (modified PTFE) — replaceable
- Stem: 17-4 PH (UNS S17400)
- Stock diameters: 2" (DN50), 2½" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250)
- Special order diameters: 12" (DN300), 14" (DN350), 16" (DN400), 18" (DN450)
- Nominal pressure: ANSI 150 lb
- Maximum temperature: ≤180 °C
- Compatibility: Chemicals and corrosive fluids under moderate conditions
Dimension Table with ISO 5211 Mounting
| DN (mm) | Inches | L (mm) | ISO 5211 | ØC (mm) | Wafer bolts |
|---|---|---|---|---|---|
| 50 | 2" | 44 | F05/F07 | 120.7 | 4 × 3/4" |
| 65 | 2½" | 46 | F05/F07 | 139.7 | 4 × 3/4" |
| 80 | 3" | 48 | F05/F07 | 152.4 | 4 × 3/4" |
| 100 | 4" | 54 | F05/F07 | 190.5 | 8 × 3/4" |
| 125 | 5" | 57 | F05/F07 | 215.9 | 8 × 7/8" |
| 150 | 6" | 57 | F07/F10 | 241.3 | 8 × 7/8" |
| 200 | 8" | 64 | F07/F10 | 298.5 | 8 × 7/8" |
| 250 | 10" | 71 | F07/F10 | 362 | 12 × 1" |
Fluid Compatibility — CF8M + TFM1600
- ✅ Diluted acids — H₂SO₄ up to 30%, HCl up to 20%, HNO₃ up to 25%
- ✅ Alkalis — NaOH up to 40%, KOH up to 30%
- ✅ Liquid and gaseous hydrocarbons — gasoline, diesel, LPG, natural gas
- ✅ Organic solvents at moderate concentrations
- ✅ Seawater and brine solutions up to moderate temperatures
- ✅ Process steam up to 180 °C
- ✅ Petrochemical process fluids and process gases
- ✅ Natural gas with H₂S and wet CO₂
- ⚠️ Concentrated acids (H₂SO₄ >50%, HF): CF8M body may be insufficient — consult
- ❌ HF, concentrated ClO₂: use PFA corrosion-resistant valve

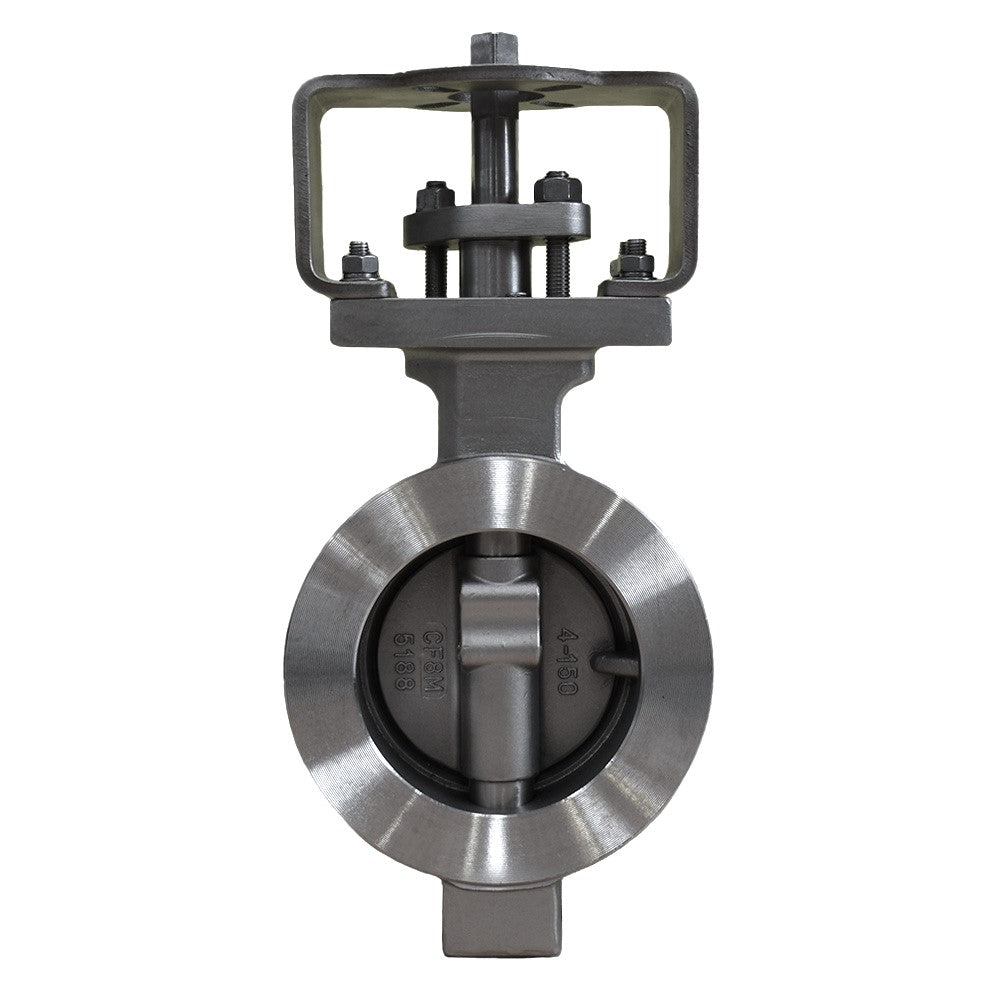

Automation — ISO 5211, reduced operating torque
Double eccentricity significantly reduces operating torque in the intermediate position (10°–80°) compared to a conventional butterfly valve — the disc is separated from the seat during almost the entire stroke. The maximum torque is concentrated in the final degrees of closing. This feature allows:
- Lower torque actuators in intermediate diameters: In 4" to 8", the operating torque of the double eccentric is lower than that of the equivalent conventional butterfly valve — check with Cematic the correct torque for each diameter/pressure combination
- Greater control precision: The constant and low torque during the stroke improves positioner response and positioning accuracy in modulating control
- Single or double-acting pneumatic actuator: See butterfly valves with pneumatic actuator →
- ON/OFF or modulating electric actuator: See butterfly valves with electric actuator →
Main Applications
- Chemical industry — corrosive fluids with high cycle frequency: Double eccentricity is the first choice when the butterfly valve operates more than 10,000 cycles per year in corrosive fluids. In inorganic chemistry, organic synthesis, and reagent handling, the conventional butterfly valve requires seat replacement more frequently — double eccentricity significantly reduces this maintenance frequency.
- Petrochemicals and refineries — hot hydrocarbon service: Refinery and petrochemical plant piping classes frequently specify API 609 for butterfly valves in hydrocarbon service. TFM1600 resists hydrocarbons and their derivatives without the swelling that EPDM or NBR would suffer.
- Oil & Gas — natural gas with H₂S and CO₂: Wet natural gas with H₂S and dissolved CO₂ is incompatible with standard elastomers in the long term. TFM1600 is not attacked by these components and the CF8M body resists typical process gas in production and transportation facilities.
- Power generation — steam and high-temperature fluids: Process steam up to 180 °C, heating fluids, and process fluids in power plants where the conventional butterfly valve with EPDM is no longer viable due to temperature. TFM1600 maintains its sealing properties up to 180 °C without the progressive degradation of EPDM above 120 °C.
- Solar thermal and geothermal energy: Concentrated solar power (CSP) facilities with thermal oil at 150–300 °C and geothermal plants with corrosive high-temperature process fluids. CF8M + TFM1600 covers the operating range of these systems in the standard diameters of thermal fluid distribution.
- Pulp and paper — process chemicals: Bleaching lines with diluted ClO₂, NaOH, diluted H₂SO₄, and other kraft process chemicals where the conventional butterfly valve requires frequent seat replacements. Double eccentricity in CF8M + TFM1600 significantly extends the maintenance interval in these services.
For the standard iron butterfly valve with EPDM/NBR/Viton seat, see iron wafer butterfly valve with SS316 disc →
