The static balancing valve ensures that every terminal in a hydraulic system—fan coil, air handling unit, heat exchanger, or process unit—receives exactly the design flow rate for which it was calculated, regardless of its position in the distribution network. Without hydraulic balancing, short circuits receive excess flow while the most distant ones are undersupplied, leading to excessive energy consumption, poor thermal comfort, and premature equipment wear. Cematic static balancing valves integrate precise flow control, full shut-off, and in-field flow measurement in a single Y-oblique body. Available in GGG40 ductile iron for treated closed-loop systems and SS316 stainless steel for potable water, highly chlorinated water, and corrosive environments.

✓ Dual function—flow control + shut-off in one body ✓ Y-oblique body—minimal pressure loss ✓ 2 pressure ports—direct in-field measurement ✓ Memory function—lockable travel stop ✓ GGG40 and SS316 available ✓ DN50–DN150 · PN16 · EN 1092-2 ✓ ISO 9001:2015 · Stock in Mexico City

Material Selection—GGG40 or SS316

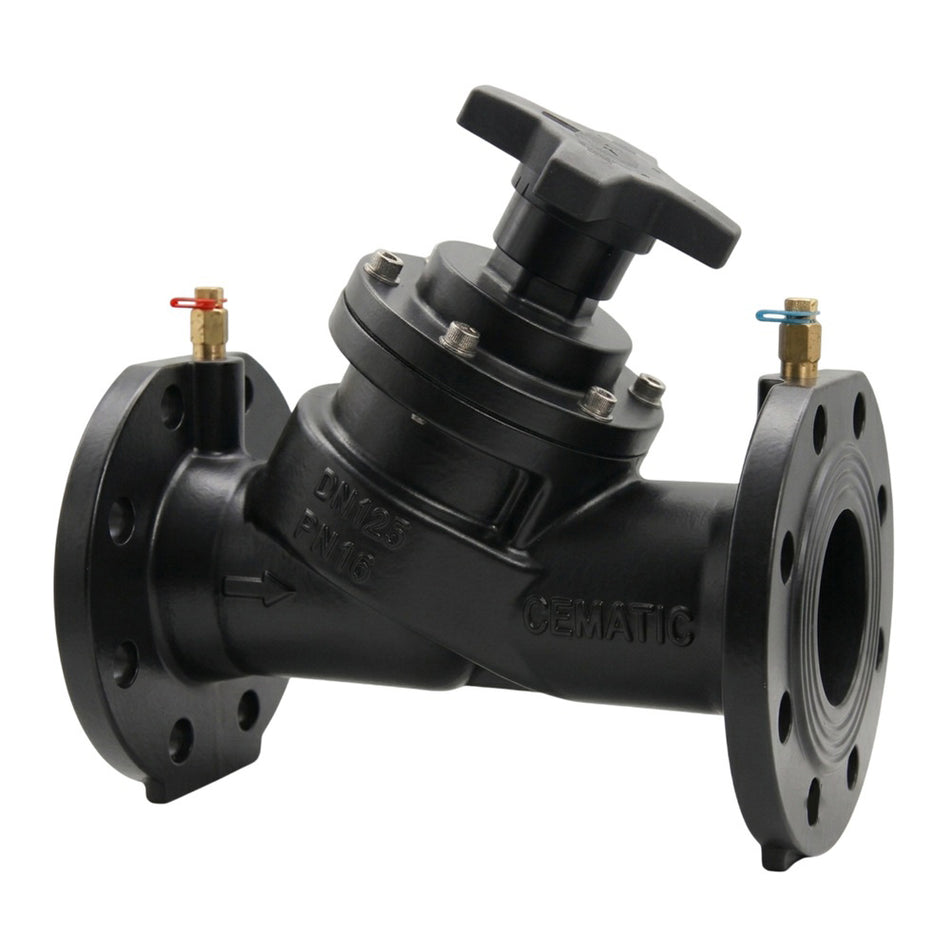

GGG40 Ductile Iron
Body: GGG40 ductile iron
Bonnet: GGG40 ductile iron
Disc: GGG40 ductile iron
Stem: Brass
Seal: EPDM
Flange: EN 1092-2 PN16
✓ Closed-loop HVAC and heating systems
✓ Treated water with pH 8–10 inhibitors
✓ Closed-loop glycol water
✓ Industrial cooling water
✗ Not suitable for potable water or open-loop systems

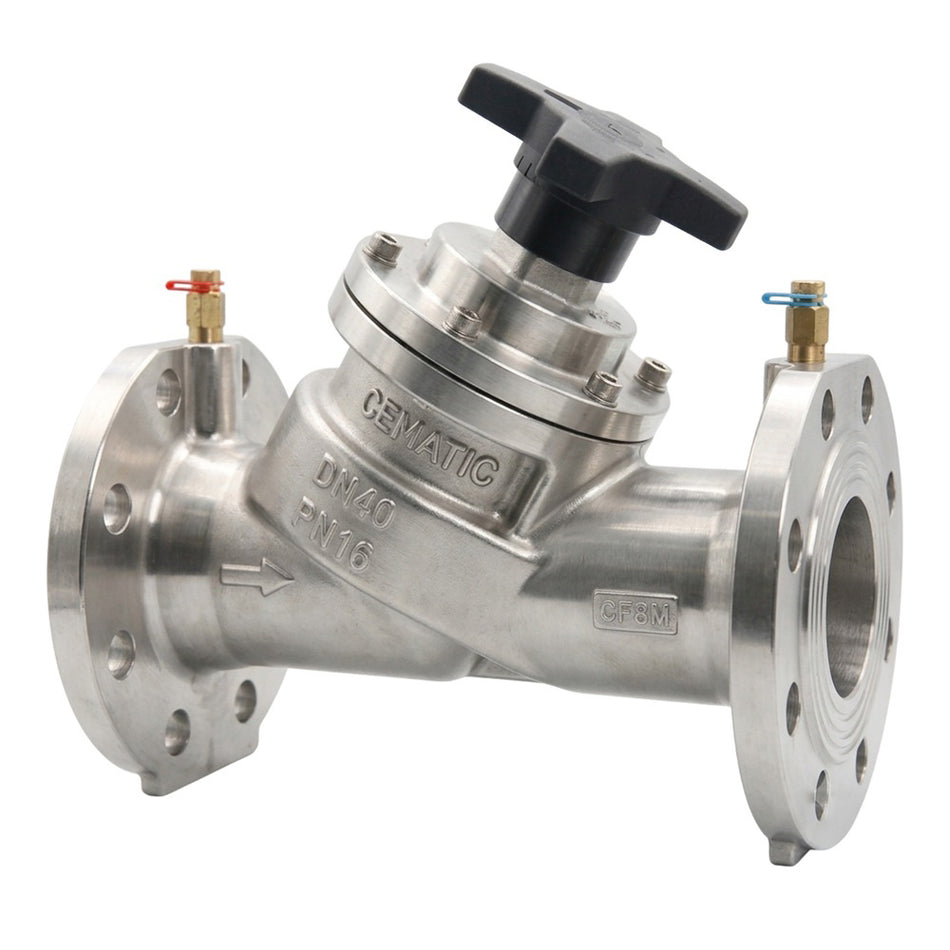

SS316 Stainless Steel
Body: SS316 stainless steel
Bonnet: SS316 stainless steel
Disc: SS316 stainless steel
Stem: Brass
Stem barrel: SS316 stainless steel
Seal: EPDM
Flange: EN 1092-2 PN16
✓ Potable water and open-loop systems
✓ High chlorine, ozone, and chlorine dioxide concentrations
✓ Coastal buildings and saline environments
✓ Pharmaceutical and food-grade traceability
✓ Also suitable for all GGG40 applications
Selection Criterion GGG40—Ductile Iron SS316—Stainless Steel
Potable water / open-loop system ✗ Not suitable ✓ Suitable
High chlorine / ozone / chlorine dioxide ✗ Accelerated corrosion ✓ Resistant
Coastal environments / salinity ✗ Not recommended ✓ Suitable
Closed-loop system with treated water at pH 8–10 ✓ Optimal ✓ Suitable
Closed-loop glycol water ✓ Suitable ✓ Suitable
Pharmaceutical / food-grade traceability ✗ No SS traceability ✓ Traceable
Fire protection with potable water ✗ Not suitable ✓ Suitable
Relative cost ✓ Lower Higher initial investment

Common Specifications—Both Models

Parameter Value
Valve type Dual-function static balancing—Y-oblique body
Design standard BS 7350 | GB/T 28636-2012
Face-to-face EN 558-1 Series 1
Connection PN16 flanges per EN 1092-2—raised face (RF)
Nominal pressure PN16 (1.6 MPa)
Body test pressure 2.4 MPa (hydrostatic test)
Seat test pressure 1.76 MPa
Nominal diameters DN50–DN150 (2" to 6")
Operating temperature –20°C to +120°C
Dynamic seal EPDM—stem, bonnet, and pressure port O-rings
Flange gasket EPDM
Handwheel PA66-GF30 nylon with graduated opening scale
Memory function Adjustable and lockable screw travel stop
Measurement ports 2 side ports for portable flow meter
Shut-off function Integrated shut-off—no additional valve required
Certification ISO 9001:2015

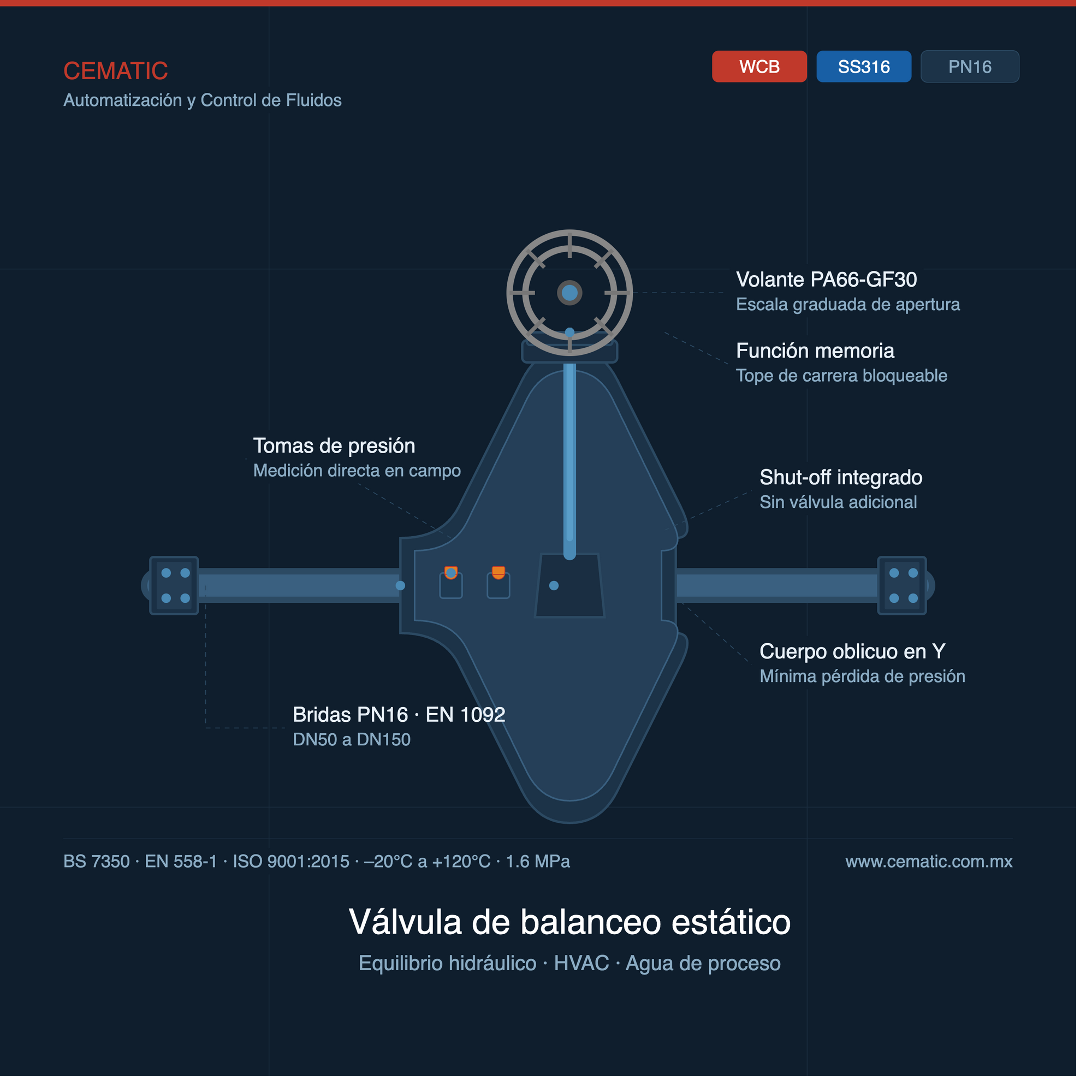

Key Design Features

Y-oblique body

Reduces intrinsic pressure loss compared to conventional straight globe bodies. Lower baseline hydraulic resistance—lower pump energy consumption during continuous operation.

Integrated dual function

Precise flow control and full shut-off in a single body. Eliminates the need for an additional isolation valve on each branch—saving space and installation costs.

2 side pressure ports

Direct connection to a portable flow meter (hydrometer) for measuring and adjusting in the field during commissioning without opening the line or installing permanent instrumentation.

Graduated opening scale

The PA66-GF30 handwheel features a numerical position scale. Allows the setting to be recorded and reproduced exactly after any maintenance intervention.

Memory function

Lockable screw travel stop. After closing to isolate equipment, the operator returns the valve exactly to the design flow rate without the need to measure again.

Versatile installation

Installation on the supply or return side—return installation is recommended due to lower temperatures. Compatible with any orientation in the horizontal plane without restrictions.


Commissioning Process—5 Steps

1Installation
Install on the return of each terminal branch—fan coil, UMA, heat exchanger
→
2Connection
Connect the portable flow meter to the 2 side pressure ports
→
3Measurement
Read the actual flow rate circulating in the field
→
4Adjustment
Turn the handwheel to the design flow rate—record the position on the scale
→
5Locking
Secure the travel stop with the screw—memory function activated

Industries and Applications

Industry Typical application Recommended material
HVAC and climate control Return of fan coils and UMAs in corporate buildings, hotels, hospitals, and shopping centers with chilled water or treated hot water GGG40
Heating and district heating Hot water distribution between buildings—compensating for imbalance between short and long circuits GGG40 or SS316
Radiant flooring Distribution manifolds with closed-loop antifreeze glycol water GGG40 or SS316
Process industry Closed-loop cooling water circuits for equipment and heat exchangers in chemical and manufacturing plants GGG40
Potable water treatment Distribution manifolds with chlorinated, ozonated, or chlorine dioxide water SS316
Pharmaceutical and food-grade Purified water, process water—material traceability in contact with the fluid SS316
Buildings with strict regulations Hospitals, laboratories, food plants—sanitary water and fire protection systems SS316
Power generation Condenser cooling water in thermoelectric and combined cycle plants GGG40

Why Choose Cematic?

ISO 9001:2015

Certified company. Traceability and quality control for every product. Complete technical documentation available for engineering and projects.

Stock in Mexico City

Immediate delivery on the most requested sizes. No import times for projects with committed delivery dates.

Direct technical advice

Material selection, flow verification, and commissioning support. Same-business-day response via WhatsApp, email, or phone.

Industrial valve specialists

Supplying valves to industrial, HVAC, and infrastructure projects in Mexico and the United States with manufacturer technical support.

Not sure which material to choose? Tell us the type of fluid, whether the system is open or closed, the water treatment program, and the industry—we will recommend the correct model on the same business day.
