Rising Stem Knife Valve | GGG40 Body SS304 Disc EPDM Seat | Handwheel | Semi-Lug (Wafer) Flanges

In stock
SKU: PKNDC0110
Regular price $4,946.79 MXN
Measure

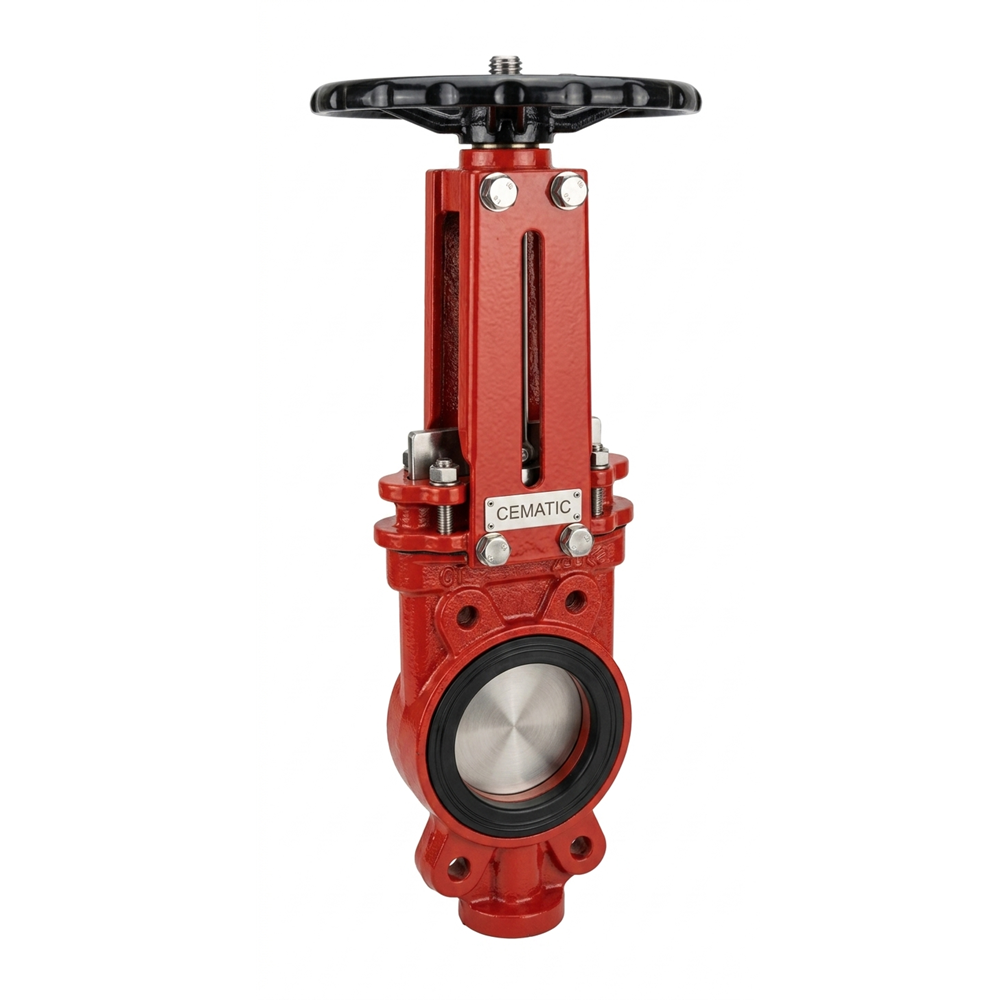

Upright Stem Knife Gate Valve — GGG40 | SS304 Disc | EPDM Seat | Handwheel | 150 lb Semi-Lug (Wafer) Flanges

Cematic's GGG40 upright stem knife gate valve controls and isolates fluids with solids, sludge, and particles in medium-pressure industrial systems. Thanks to its GGG40 ductile iron body, it offers greater resistance to impacts and fatigue than conventional gray iron. Therefore, it is the correct specification for installations where material and price are simultaneous selection factors.

On the other hand, the SS304 disc provides corrosion resistance in direct contact with the fluid, while the EPDM seat ensures tightness and resistance to aging in aqueous fluids and at temperatures up to 110°C. As a result, the GGG40 + SS304 + EPDM combination is the standard specification in water treatment, wastewater, and mining plants where cost and durability must be balanced.

🔴 DO NOT PRESSURIZE WITHOUT CHECKING THE FLOW DIRECTION!
The arrow marked on the valve body must point in the direction of the fluid flow. Installing it backward will destroy the gate. Check before pressurizing

Upright vs. Non-Upright Stem — Which to Choose for a Knife Gate Valve?

Before selecting the stem type, it is essential to evaluate the available space and the status verification requirements of the installation. Therefore, the following table summarizes the key selection criteria:

Criterion Upright Stem ← This Model Non-Upright NRS Stem
Visual status verification ✅ Direct — visible stem indicates opening without instrumentation Requires position indicator or turn counter
Vertical space required Requires clear space above ≈ 1× the nominal diameter ✅ No additional space — constant height during operation
Operating thread ✅ External — easy lubrication and field maintenance Internal — in contact with the fluid
Thread contamination by fluid ✅ None — the thread never comes into contact with the fluid Possible — the thread is exposed to the fluid at all times
Typical installation ✅ Surface — process plants, pump rooms, WWTPs Underground — valve chambers, potable water networks
NFPA 13 / fire protection system requirement ✅ Yes — OS&Y is the mandatory code standard Not applicable for fire systems
Ideal for WWTPs, water purification plants, pump rooms, above-ground mining Underground networks, manholes, valve chambers

GGG40 vs. WCB vs. SS316 — Body Material Selection Guide

The body material determines the mechanical strength, corrosion resistance, and cost of the assembly. Therefore, before selecting, identify the characteristics of the fluid and the installation environment:

  • GGG40 ductile iron (this model) — neutral fluids, water, and non-aggressive sludge: thanks to its spheroidal graphite, GGG40 resists impacts and vibration better than gray iron. Therefore, it is the correct specification for aqueous fluids without significant chemical aggressiveness where the assembly cost is a relevant selection criterion.
  • WCB carbon steel — greater mechanical strength and industrial sludge: likewise, WCB offers greater mechanical strength than GGG40 and a lower cost than SS316. Thus, it is suitable when the process involves higher pressures or fluids with greater mechanical aggressiveness, such as dense mineral sludge or abrasive mixtures.
  • SS316 stainless steel — corrosive fluids and chemical services: similarly, SS316 offers superior resistance to acids, alkalis, and chlorides. Therefore, it is the correct specification when the fluid presents chemical aggressiveness that would deteriorate GGG40 or WCB, such as sludge with H₂S, acidic effluents, or solutions with chlorides.

Technical Specifications of the GGG40 Upright Stem Knife Gate Valve

These are the complete specifications of this GGG40 upright stem knife gate valve with Semi-Lug (Wafer) flanges:

Parameter Value
Valve type Knife gate — vertical linear movement
Stem Upright
Flange type Semi-Lug (Wafer) 150 lb
Body material GGG40 ductile iron
Disc material (gate) SS304 stainless steel
Seat / seal EPDM
Actuation Manual with handwheel
Operating temperature -20°C to +110°C
Flow direction One-way
Installation position Vertical recommended — horizontal possible with stem support
Actuator compatible Manual handwheel actuation

EPDM Seat in the Upright Stem Knife Gate Valve — Resistance and Service Life

EPDM is the standard seat material in this GGG40 upright stem knife gate valve for aqueous fluids and sludge with neutral to slightly alkaline pH. Since its elastic properties ensure a tight closure even with fine particles trapped between the seat and the gate, it offers the following concrete advantages:

  • Resistance to aging and ozone: thanks to its composition, EPDM does not degrade from prolonged exposure to air, ozone, or chlorine-treated water. Therefore, it is the standard choice in potable water treatment plants where residual chlorine would deteriorate NBR or neoprene seats.
  • Elasticity for closing with solids: likewise, EPDM adapts to the irregularities created by fine particles between the seat and the gate. Thus, it ensures tightness even in sludge with suspended solids without the need for a higher-cost metal seat.
  • Temperature range suitable for most water and sludge services: similarly, it operates from -20°C to +110°C without significant loss of elasticity. Therefore, it covers all potable water, wastewater, and industrial process sludge services.
  • Limitation in hydrocarbons and oils: finally, EPDM is not compatible with oils, hydrocarbons, or organic solvents. Consequently, if the fluid contains hydrocarbons, a Viton (FKM) or NBR seat is recommended depending on the process conditions.

Fluid Compatibility of this Upright Stem Knife Gate Valve — GGG40 + SS304 + EPDM

  • ✅ Primary and secondary sludge in WWTPs: since the SS304 gate cuts fibers and suspended particles, it is the standard isolation valve in sludge lines from digesters, thickeners, and dewatering systems. Therefore, it eliminates the obstructions that would be caused by conventional gate valves.
  • ✅ Neutral and alkaline industrial wastewater: likewise, the GGG40 + EPDM combination resists the neutral to slightly alkaline pH of most industrial effluents without deterioration of the body or seat.
  • ✅ Potable water and process water: similarly, EPDM meets the requirements for contact with water for human consumption. Consequently, it is suitable for water purification plants where visual status verification is required, such as OS&Y.
  • ✅ Cellulose pulp and paper pulp: additionally, the SS304 gate cuts suspended cellulose fibers without obstructions. Therefore, it is the standard specification for pulp lines in kraft and semi-kraft process plants.
  • ✅ Cement, lime, and powdered minerals: on the other hand, the cutting action of the gate prevents the accumulation of solids in the valve cavity. Likewise, the GGG40 body resists the mechanical impacts of abrasive solids of moderate hardness.
  • ⚠️ Acidic fluids (pH < 5) or those with chlorides: in this case, GGG40 may suffer accelerated corrosion. Therefore, an SS316 body is recommended for fluids with acidic pH or the presence of chlorides.
  • ⚠️ Oils, hydrocarbons, or solvents: similarly, EPDM
