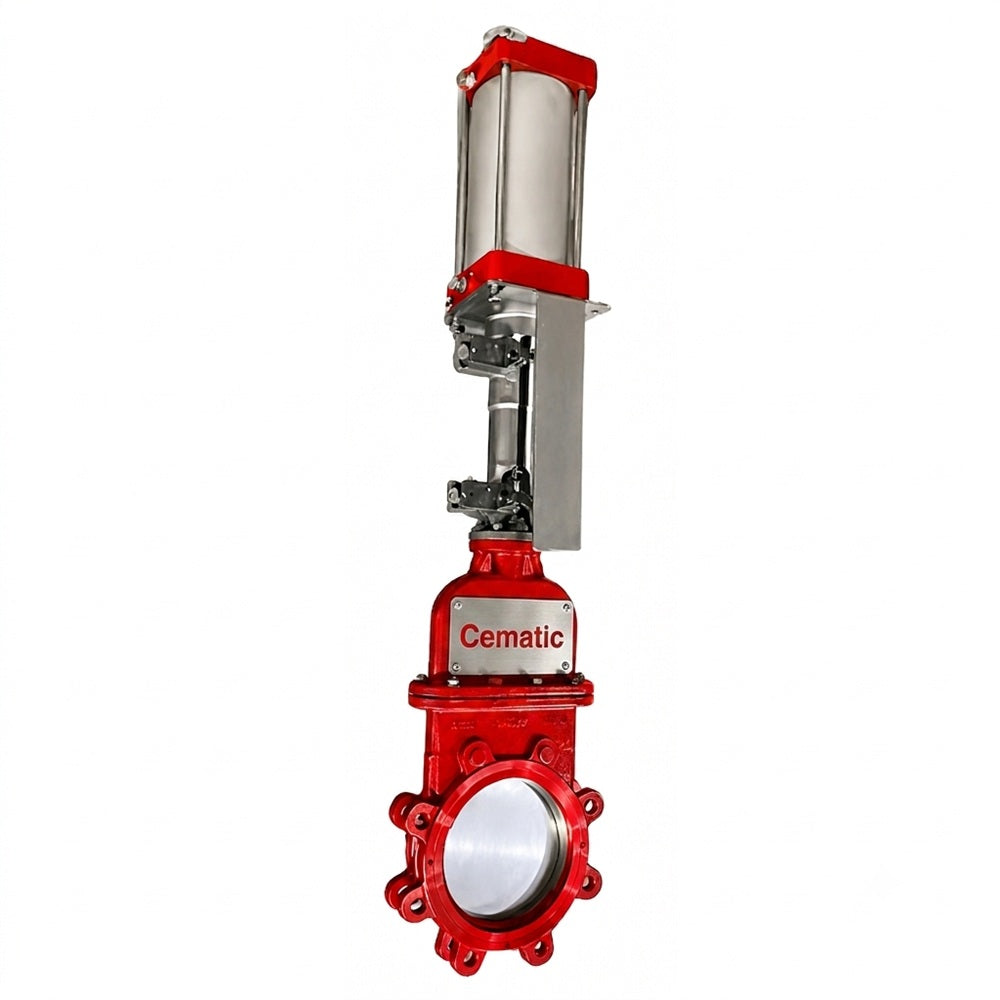

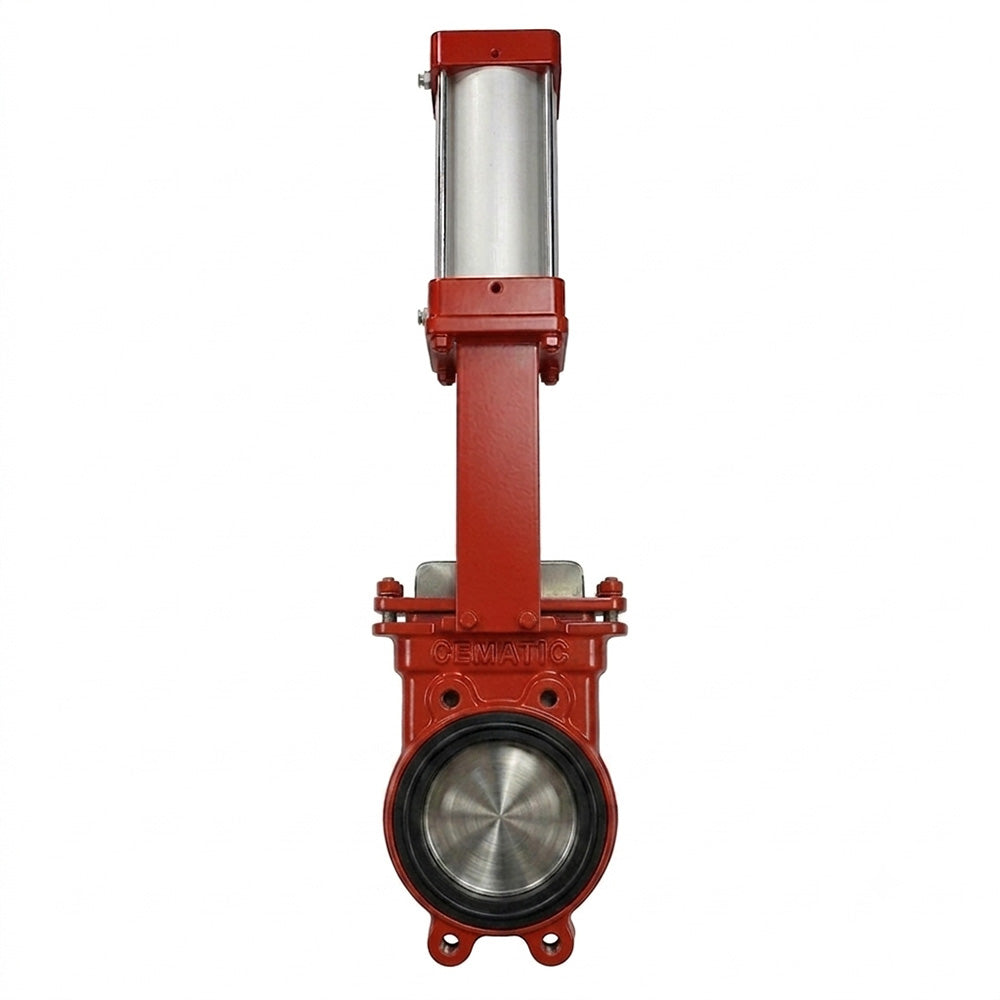

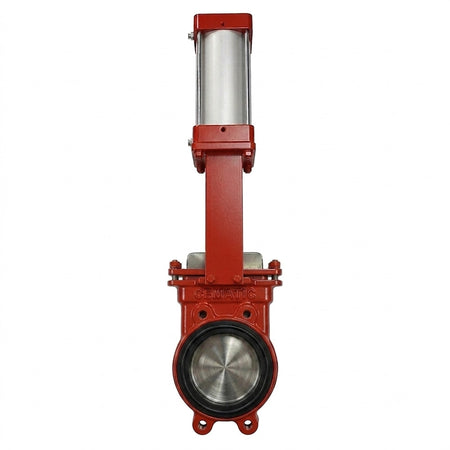

GGG40 Rising Stem Knife Valve with Pneumatic Actuator — SS304 Disc | EPDM Seat | 150Lb Wafer Flanges
Cematic's GGG40 pneumatic actuator knife valve is the automated solution for flow control in lines with solids, sludge, and suspended particles. Thanks to its double-acting pneumatic cylinder actuator, opening and closing are performed from the control room via a PLC or DCS signal.
Therefore, it is the correct specification for isolation points with frequent or remote operation where manual operation with a handwheel is not feasible.
Regarding its materials, the GGG40 ductile iron body offers superior impact and fatigue resistance compared to gray iron. For this reason, it is the correct option for aqueous fluids and neutral pH sludge where cost is a relevant selection criterion compared to WCB or SS316.
Likewise, the SS304 disc and the EPDM seat guarantee resistance to fluid corrosion and tightness at temperatures up to 110 °C.
On the other hand, the OS&Y rising stem physically rises when opening the valve, remaining visible above the actuator. In this way, the status of the valve —open or closed— is visually verifiable from any point in the installation, even when the pneumatic actuator is in operation.
As a result, this GGG40 knife valve with pneumatic actuator combines the advantage of visual OS&Y verification with the speed and automation of pneumatic actuation.
🔴 DO NOT PRESSURIZE WITHOUT VERIFYING THE FLOW DIRECTION!
The arrow marked on the valve body must point in the direction of the fluid flow. Installing it backward destroys the gate. Check before pressurizing
Pneumatic Actuator vs. Manual Handwheel — When to Automate Your Knife Valve?
The choice between a pneumatic actuator and a manual handwheel depends mainly on the frequency of operation and the availability of control infrastructure. Therefore, the following table facilitates the decision:
| Criterion | Pneumatic Actuator ← This model | Manual Handwheel |
|---|---|---|
| Remote operation from control room | ✅ Yes — PLC or DCS signal via solenoid valve | ❌ No — requires an operator in the field |
| Frequency of operation | ✅ High — frequent cycles without operator fatigue | Occasional — manual opening and closing in the field |
| Cycle speed | ✅ Fast — opening and closing in seconds | Slow — multiple handwheel turns per cycle |
| Fail-safe position upon loss of air | Depends on the type — double-acting maintains last position | ✅ Defined by the operator — no dependence on utilities |
| Requires compressed air network | Yes — minimum 5.5 bar at the installation point | ✅ No — no additional infrastructure |
| Integration with control systems | ✅ PLC, DCS, SCADA via digital signal | ❌ Manual field operation only |
| Ideal for | Automated WWTPs, water treatment plants, mining with centralized control | Occasional isolation points without pneumatic infrastructure |
Double-Acting vs. Single-Acting Actuator in Pneumatic Knife Valves — Fail-Safe Position
The double-acting pneumatic cylinder actuator uses compressed air to both open and close the valve. Therefore, it is important to understand its behavior upon loss of air supply to determine if it is the correct configuration for your process:
- Double-acting — maintains last position upon loss of air (this model): since the actuator requires an active signal to both open and close, upon loss of pneumatic supply, the valve remains in the position it was in. Therefore, it is the correct configuration when there is no defined fail-safe position or when maintaining the last position is the safe behavior of the process.
- Single-acting with return spring — defined fail-safe position: likewise, if your process requires the valve to close or open automatically upon any failure of pneumatic supply or control signal, the single-acting spring actuator is the correct configuration. In this way, it guarantees the fail-safe position without operator or control system intervention.
In summary, if your process has a defined fail-safe position —such as emergency closure of a sludge line— we recommend the single-acting actuator with return spring. Conversely, if the last position is equally safe upon failure, double-acting is the correct and most common choice in plants with stable compressed air.
Technical Specifications of the GGG40 Knife Valve with Pneumatic Actuator
| Parameter | Value |
|---|---|
| Valve type | Knife gate — reduced bore, unidirectional |
| Stem | OS&Y Rising Stem (Outside Screw & Yoke) |
| Flange type | Semi-Lug (Wafer) 150Lb |
| Body material | GGG40 ductile iron |
| Gate material (knife) | SS304 stainless steel |
| Seat / elastomeric seal | EPDM |
| Actuator | Double-acting pneumatic cylinder |
| Behavior upon loss of air | Maintains last position (double-acting) |
| Operating temperature | -20 °C to +110 °C |
| Flow direction | Unidirectional — install according to the arrow on the body |
| Bore | Reduced |
| Potable water suitability | Yes — materials suitable for contact with water for human consumption |
| Control signal | 24VDC / 110VAC solenoid valve (not included) |
Fluid Compatibility — GGG40 + SS304 + EPDM
- ✅ Potable water and process water: since EPDM is suitable for contact with water for human consumption, it is the standard specification in water treatment plants and distribution systems where visual OS&Y verification is a code requirement.
- ✅ Primary and secondary sludge in WWTPs: likewise, the SS304 knife cuts fibers and suspended solids without clogging. Therefore, it is the preferred isolation valve in sludge lines for automated digesters, thickeners, and dewaterers.
- ✅ Neutral and slightly alkaline industrial wastewater: similarly, the GGG40 + EPDM combination resists the neutral to slightly alkaline pH of most industrial effluents without degradation of the body or seat.
- ✅ Cellulose pulp and paper pulp: additionally, the knife cuts suspended cellulose fiber without material retention in the cavity. For this reason, it is the standard specification in automated pulp lines in kraft process plants.
- ✅ Cement, lime, and powdered minerals: on the other hand, the cutting action of the knife prevents solids accumulation in the valve cavity. Likewise, the pneumatic actuator provides the force necessary to overcome the resistance of solids in high-density lines.
- ⚠️ Acidic fluids (pH < 5) or those with chlorides: in this case, GGG40 may suffer accelerated corrosion. Therefore, an SS316 body is recommended for fluids with acidic pH or the presence of aggressive chlorides.
- ⚠️ Oils, hydrocarbons, or solvents: finally, EPDM is not compatible with these fluids. Consequently, a Viton or NBR seat is recommended for processes with hydrocarbons or organic solvents.
Applications of the GGG40 Knife Valve with Pneumatic Actuator
Thanks to the combination of a double-acting pneumatic actuator, OS&Y rising stem, SS304 disc, and EPDM seat, this valve is specified in automated surface installations. In particular, it stands out where frequent opening and closing cycles controlled from the control room are required:
Pneumatic Knife Valve in Potable Water, Wastewater, and Sanitation
- Automated wastewater treatment plants (WWTPs): thanks to the pneumatic actuator, it allows automatic control of sludge flow from the SCADA system without the need for operators in the field. Therefore, it reduces operating costs and improves the consistency of pumping cycles in digesters, thickeners, and dewaterers.
- Water treatment plants with centralized control: likewise, the rising stem guarantees visual verification of the status even in automated condition. In this way, it simultaneously meets the OS&Y visual inspection requirement and the need for remote operation from the control room.
- Wastewater pumping stations: likewise, the double-acting actuator synchronizes the opening and closing of the valve with the starting and stopping of the pumps. Therefore, it reduces water hammer and improves the efficiency of the pumping cycle in stations with automated operation.
Pneumatic Actuator Knife Valve in Mining, Pulp, and Paper
- Automated mineral sludge and tailings circuits: since the pneumatic actuator provides the force necessary to overcome the resistance of abrasive solids, it operates reliably in high-density tailings lines. Therefore, it eliminates the need for operators in the field in flotation and thickening circuits.
- Pulp and slurry lines with DCS control: on the other hand, the SS304 knife cleanly cuts the cellulose fiber in each opening cycle. Likewise, the double-acting pneumatic actuator provides the cycle speed necessary to synchronize with the paper mill control system.
- Solids handling and dosing systems: finally, the pneumatic actuator allows integration with PLC systems via a 24VDC or 110VAC solenoid valve. Likewise, the rising stem position signal can be monitored with a proximity sensor without modifying the valve.
Manual Operation Variant
If your installation does not have a compressed air network or the isolation point is for occasional operation, we recommend the GGG40 knife valve with rising stem and handwheel operation. Conversely, if the process requires full automation and compressed air supply is available, this GGG40 double-acting pneumatic actuator knife valve is the correct choice.
