SS316 Gate Valve | OS&Y Rising Stem | Flexible Graphite | ANSI 150 Flange | Steam | Cematic

In stock
SKU: PMCSS0108
Regular price $10,206.47 MXN
Measurements

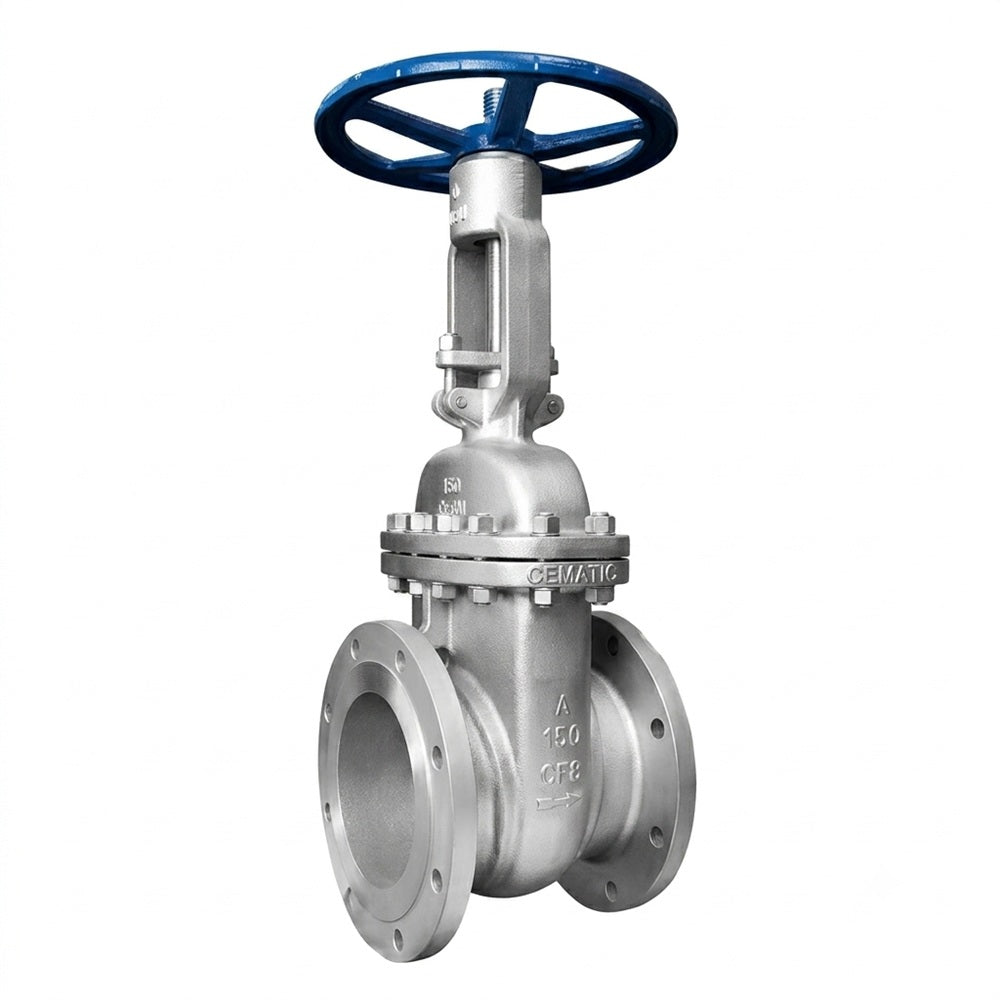

The Cematic SS316 OS&Y (Outside Screw & Yoke) Upright Gate Valve is the isolation solution for steam, condensate, and corrosive fluid service in ANSI 150 pressure class. With a body, wedge, seats, and stem entirely in SS316 stainless steel, and flexible graphite packing for high temperatures, it is designed and tested under the industry's most demanding standards — API 600, API 598, ASME B16.10, and ASME B16.5 — ensuring tightness, material traceability, and a long service life in high-temperature steam services.

🔥 Steam service 🔥 Condensate ✓ SS316 body ✓ SS316 wedge ✓ SS316 seats ✓ SS316 stem ✓ Flexible Graphite Packing ✓ API 600 ✓ API 598 ✓ ASME B16.10 ✓ ASME B16.5 ✓ ANSI 150 RF flange ✓ OS&Y — Upright stem ✓ CDMX stock
Correct option for steam: Flexible graphite is the standard packing material for high-temperature steam service — it maintains the dynamic stem seal even with repeated thermal cycles and high temperatures. All-SS316 construction (body + wedge + seats + stem) eliminates the risk of galvanic corrosion and ensures resistance to steam, condensate, and steam system corrosion products throughout the valve's service life.

Construction Materials — All SS316

Body
SS316 stainless steel
ASTM A351 CF8M
Bonnet
SS316 stainless steel
Same material as the body
Wedge / Gate
SS316 stainless steel
Solid wedge — maximum resistance
Seats
SS316 stainless steel
Metal seats integrated into the body
Stem
SS316 stainless steel
External thread — OS&Y
Packing
Flexible graphite
Standard for high-temperature steam
Why flexible graphite and not PTFE for steam? PTFE has a maximum temperature of ~200–260°C and loses elasticity with steam thermal cycles — the packing can lose its seal over time. Flexible graphite maintains its sealing properties up to 450°C (in a non-oxidizing atmosphere) and withstands steam heating and cooling cycles without degradation. It is the packing material specified by API 600 for steam and high-temperature services.

Design and Testing Standards

API 600

Design and construction standard for flanged, threaded, and welded steel gate valves. Defines wall thicknesses, bonnet dimensions, minimum materials, and trim requirements for process service.

API 598

Industrial valve inspection and testing standard. Defines body pressure tests, seat tests, and backseat tests — a mandatory requirement for PEMEX and CFE projects and process plants.

ASME B16.10

Face-to-face and end-to-end. Ensures dimensional interchangeability with any ANSI 150 gate valve from another manufacturer without modifying the existing piping.

ASME B16.5

Piping flange and flanged fitting dimensions. Defines the bolt pattern, outside diameters, and pressure-temperature (P-T rating) of the ANSI Class 150 RF flange.


OS&Y — Outside Screw & Yoke: advantages of the upright stem

✓ Why OS&Y is the correct design for steam
✓ The external thread never comes into contact with steam or condensate — eliminates corrosion and thread seizing in service
✓ The visible stem clearly indicates the status: stem out = valve open, stem in = closed
✓ Allows packing lubrication and adjustment without removing the valve from the line or interrupting service
✓ Mandatory requirement for fire protection systems under NFPA 13 and for supervised isolation valves
✓ API 600 standard — specified in PEMEX and CFE plants, petrochemical plants, and international projects
OS&Y vs. NRS comparison for steam
Thread: OS&Y external thread protected from steam · NRS internal thread exposed to steam
Visual status: OS&Y verifiable without instrumentation · NRS requires an indicator
Packing maintenance: OS&Y in-line without shutdown · NRS requires line shutdown
Temperature: OS&Y superior — thread does not degrade from thermal cycles
Recommended for steam: OS&Y ✓ · NRS not recommended

Technical Specifications

Valve typeGate — solid wedge
Stem designUpright OS&Y (Outside Screw & Yoke)
Body materialSS316 stainless steel — ASTM A351 CF8M
Bonnet materialSS316 stainless steel — ASTM A351 CF8M
Wedge materialSS316 stainless steel
Seat materialSS316 stainless steel — metal seats integrated into the body
Stem materialSS316 stainless steel
Stem packingFlexible graphite — standard for steam and high temperature
Pressure classANSI 150 (PN20)
Flange typeRaised Face (RF) — raised face
Flange standardASME B16.5 — Class 150
Face-to-faceASME B16.10
Design standardAPI 600
Test standardAPI 598 — body, seat, and backseat tests
Steam working pressureANSI 150 — per ASME B16.5 P-T table for CF8M
Maximum temperatureUp to 425°C per P-T table (SS316 + flexible graphite)
OperationManual handwheel — stem extension or actuator available upon request
Flow directionBidirectional
Installation positionAny orientation — handwheel up recommended

ANSI 150 P-T rating — SS316 (CF8M) ASME B16.5 reference

Temperature Max. pressure (bar) Max. pressure (psi) Typical service
–29°C to 38°C 19.6 285 Water, liquids at ambient temperature
100°C 17.7 256 Hot water, condensate
150°C 16.1 234 Low-pressure steam — 3–4 bar(g)
200°C 15.1 219 Medium-pressure steam — up to 10 bar(g)
260°C 13.8 200 Saturated steam at moderate pressure
315°C 12.2 177 Superheated steam
425°C 9.0 130 High-temperature superheated steam

Reference rating for CF8M per ASME B16.5 Table 2-1.4. Verify exact process conditions with the project engineer.


Key Features

All SS316 — no galvanic corrosion

Body, bonnet, wedge, seats, and stem in SS316. No internal galvanic pairs. In steam services with aggressive condensate or in systems with chemical treatment, material homogeneity prevents localized corrosion that occurs when steels of different compositions are mixed.

Integrated SS316 metal seats

Metal seats integrated into the SS316 body are the correct specification for high-temperature steam where PTFE or elastomeric seats deform and lose their seal. SS316 seats withstand the entire steam temperature range in ANSI 150 without degradation.

Flexible graphite packing

Flexible graphite maintains the stem seal in steam service with repeated thermal cycles, unlike PTFE, which loses elasticity at high temperatures. Allows packing adjustment in-line without interrupting steam service.

Visible stem — verification without instrumentation

The OS&Y allows confirmation of the valve status (open/closed) with a visual inspection from any point in the machine room, without a position indicator or additional instrumentation.

API 600 + API 598 — documentation for projects

API 600 design and API 598 testing are the engineering requirements mandated by PEMEX, CFE, petrochemical plants, and EPC projects for gate valves in process and steam lines. Test certificates available upon request.

Interchangeable — ASME B16.10

Face-to-face dimensions per ASME B16.10 ensure direct interchangeability with ANSI 150 gate valves from any manufacturer without modifying the existing piping, supports, or instrumentation.


Main Applications

Service Typical application Why SS316 + graphite
Process steam Isolation of saturated and superheated steam lines in chemical, pharmaceutical, and food plants SS316 resists acidic condensate and thermal cycles better than WCB
Steam condensate Condensate return — corrosive fluid with dissolved CO₂ and low pH values SS316 is immune to CO₂ corrosion that deteriorates WCB in weeks
Pharmaceutical industry Clean steam and pure steam for CIP/SIP sterilization SS316 meets material traceability requirements — WCB is not acceptable in contact with pharmaceutical steam
Food industry Culinary steam for cooking, pasteurization, and equipment sterilization SS316 with no corrosion — no corrosion products contaminate steam in contact with food
Chemical and petrochemical Steam tracing, freeze protection, and purging in process lines with corrosive fluids SS316 resists chlorides, organic acids, and process products that would contaminate condensate
Seawater and coastal environments Steam systems on offshore platforms and desalination plants Molybdenum in SS316 inhibits chloride pitting corrosion that would destroy WCB
Power generation Steam auxiliaries in combined cycle plants with treated demineralized water SS316 resists pure demineralized water, which is highly corrosive to carbon steels
Need WCB instead of SS316? For steam with treated industrial process water in closed systems where corrosivity is low and the lowest overall cost is the priority, the gate valve with a WCB body → offers the same isolation capability at a lower cost. Consult our technical team for the correct specification based on your system's fluid analysis.
Note on ANSI 150 for steam: The ANSI 150 pressure class covers most industrial steam services. For steam pressures above 20 bar(g) or temperatures above 400°C in continuous service, verify whether ANSI 300 or ANSI 600 class is required. We will provide the correct specification for your process free of charge.

Why choose Cematic?

  • CDMX stock — immediate delivery on the most requested sizes without import times
  • API 598 certificates available — body and seat test documentation for engineering and projects available upon request
  • Direct technical advice for steam — P-T rating verification, trim selection, and packing compatibility based on exact process conditions on the same business day
  • ISO 9001:2015 — traceability and quality control for every product



Data Sheet

Quote your SS316 gate valve today
Indicate diameter, steam pressure, temperature, and whether you require API 598 certificates — response on the same business day
