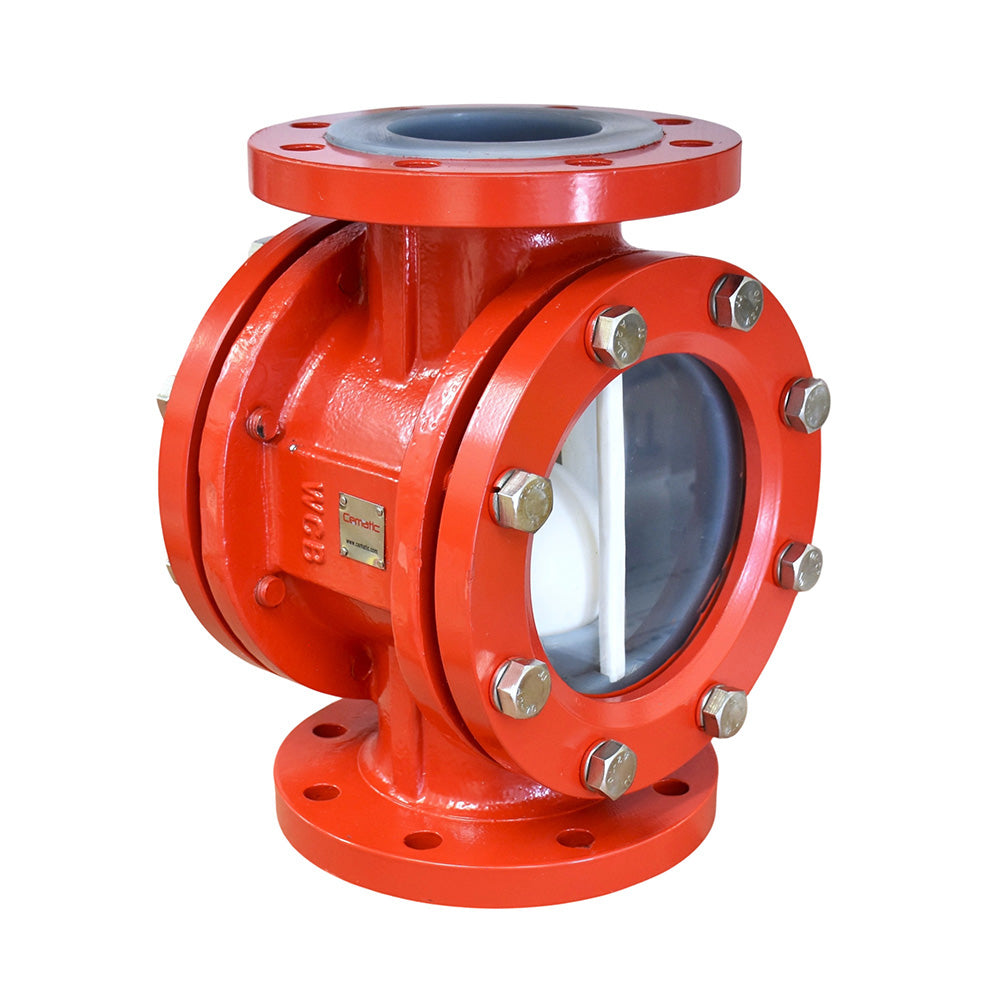

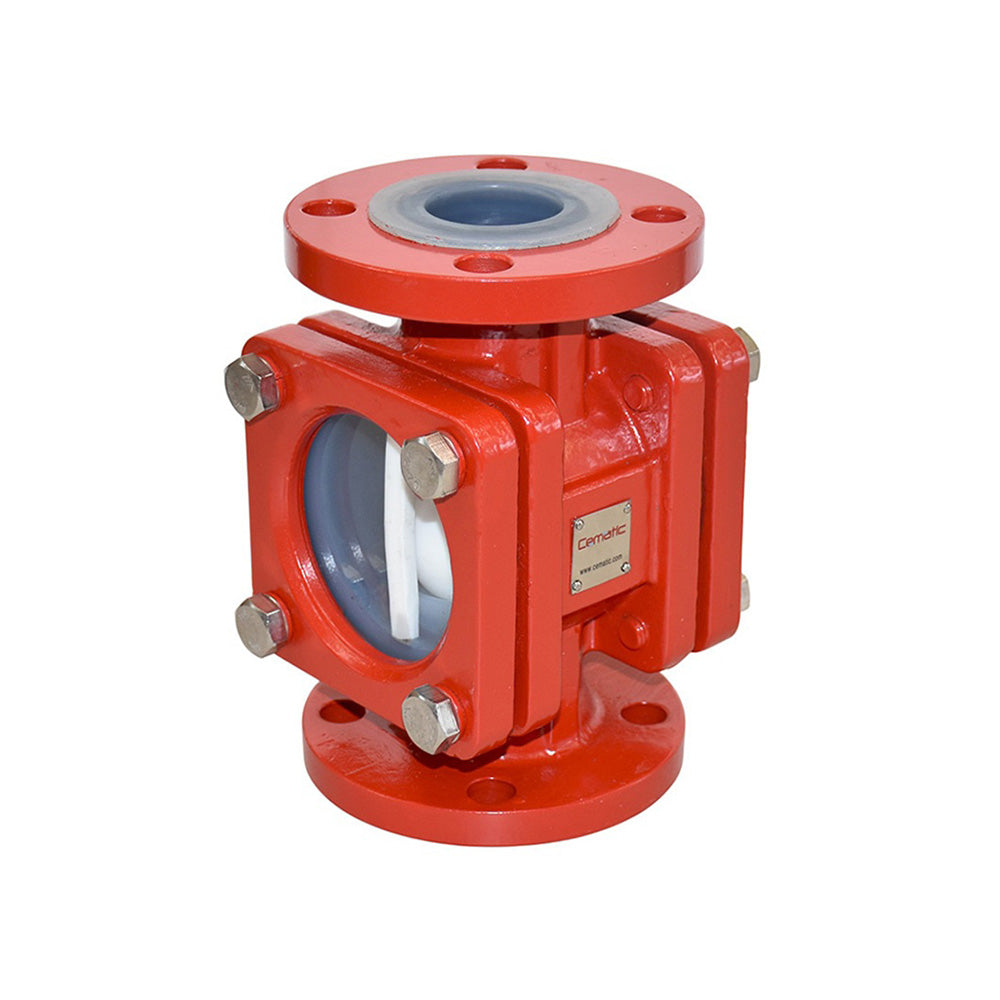

WCB Anti-Corrosive PFA Lined Ball Check Valve — With Integrated Sight Glass, ANSI 150 Flange

The anti-corrosive ball check valve with integrated sight glass is the only anti-corrosive check component that allows you to observe the fluid flowing through the valve in real-time without disassembling it or interrupting the process. The sight glass window on the top of the body directly exposes the interior of the valve to visual inspection — the operator can verify in seconds if the fluid is flowing, if there are entrained gas bubbles in the liquid, if there are sediments or suspended particles, or if the ball is sealing correctly when the flow stops. In corrosive fluid lines where disassembling the valve for inspection means working with aggressive acids, the inspection window is an operational safety advantage that no other anti-corrosive check valve offers.

The check mechanism is identical to that of the PFA ball check without a sight glass: a PTFE ball floats freely within the PFA-lined body, opening with upward flow and closing by gravity when flow stops or in case of back pressure — no spring, no hinge, no mechanism that could corrode with the aggressive fluid. The window adds inspection capability without modifying the operating principle or the chemical resistance of the PFA lining.

The sight glass — what it allows you to see and why it matters

The integrated sight glass window in the valve body provides direct visibility of the interior during normal process operation:

• Active flow verification: In acid dosing lines where the absence of flow may not be immediately detected by the control system, the operator can visually verify in seconds if the fluid is passing through the line — without the need for additional flow instrumentation.
• Gas bubble detection: The presence of entrained gas in a liquid fluid is visible through the sight glass — gas bubbles in an acid dosing line can indicate cavitation in the pump, steam leakage in the system, or an unexpected chemical reaction in the line.
• Sediment and particle detection: Suspended solids in the fluid are visible through the sight glass before they reach sensitive downstream equipment — allowing for preventive intervention before solids damage pumps, control valves, or instrumentation.
• Ball status verification: In the no-flow position, the PTFE ball should be visible in the closed position on the conical seat. If the ball does not close correctly, visual inspection through the sight glass reveals it without disassembly.
• Safety in operations with aggressive acids: Inspecting the interior of a check valve in an HF or concentrated H₂SO₄ line typically involves closing the valve, purging the line, disassembling the valve, and working with aggressive acid residues. The sight glass eliminates the need for disassembly for most routine inspections.

Operating principle — springless PTFE ball, vertical installation

The check mechanism is the same as the standard PFA ball check:

• Upward flow — valve open: Fluid pressure lifts the PTFE ball off its seat. The fluid passes around the ball upwards. The ball is visible through the sight glass in the raised position.
• Flow stopped or back pressure — valve closed: The ball falls by its own weight onto the PFA-lined conical seat, sealing the passage. The ball is visible through the sight glass in the closed position — immediate visual confirmation of the valve status.
• Springless: No active metallic components in contact with the fluid — the spring is the most susceptible component to corrosion in conventional check valves. The PTFE ball and PFA lining are the only materials in contact with the fluid.

Mandatory vertical installation with upward flow — same as the PFA ball check without a sight glass. Gravity closure requires the ball to fall onto the seat when the flow stops. In horizontal installations, the PFA wafer swing check is the correct alternative.

Valve components

Technical specifications

• Type: Ball check valve with integrated sight glass — gravity retention without spring
• Design standard: API 6D
• Face to face: ASME B16.10
• Flanges: ANSI/ASME B16.5 Class 150
• Inspection and testing: API 598
• Body material: A216 WCB + PFA lining
• Ball: Virgin PTFE
• Internal lining: PFA
• Sight glass: Integrated sight-glass in the body — visual inspection without disassembly
• Bolts: A193 B7
• Nominal diameters in stock: 1" (DN25), 1½" (DN40), 2" (DN50), 3" (DN80), 4" (DN100)
• Diameters available on request: ½", ¾", 1¼", 5", 6"
• Maximum pressure: 285–290 psi (19.6–20 bar) at 38 °C
• Operating temperature: -20 °C to +200 °C — verify specific fluid concentration and temperature
• Installation: Mandatory vertical with upward flow
• Closure: By gravity — no spring
• Vacuum capacity: Up to 0.1 mbar

Comparison — three Cematic PFA anti-corrosive check valves

Chemical compatibility

• ✅ Hydrochloric acid HCl — any concentration
• ✅ Nitric acid HNO₃ — including concentrated
• ✅ Hydrofluoric acid HF — any concentration
• ✅ Liquid Chlorine Cl₂
• ✅ Sulfuric acid H₂SO₄ — including concentrated
• ✅ Sodium hypochlorite NaClO
• ✅ Concentrated alkalis (NaOH, KOH)
• ✅ Aggressive organic solvents
• ⚠️ Always verify specific process concentration and temperature

Main applications

• Acid dosing lines with flow verification: The most frequent application of the sight glass in aggressive chemical installations. In HF, H₂SO₄ or HCl dosing systems where the absence of flow may go unnoticed by the control system, the operator visually verifies during each inspection round that the acid is flowing correctly — without additional instrumentation and without risk of acid exposure due to disassembly.
• Reflux prevention with closure verification: In any vertical aggressive acid line where retention is required — discharge of dosing pumps, transfer lines, reactant return — the sight glass allows verifying that the ball is in the closed position when the pump stops, confirming that there is no acid return to upstream equipment.
• Processes with fluids that generate sediments: In lines where the acid fluid may entrain crystallized solids, precipitates or process particles, the sight glass allows detecting the presence of solids before they reach sensitive downstream equipment — allowing for preventive action without needing to stop the line for inspection.
• Detection of entrained gas in liquid acid lines: The presence of bubbles in a liquid acid line can indicate cavitation in the pump, a chemical reaction generating gas in the line, or air ingress into the system — conditions that the sight glass visually reveals before they affect dosing or cause an incident.
• Chemical and petrochemical industry: Retention with visual inspection in mineral acid transport, dosing, and recirculation lines. The sight glass is especially valued in plants with regulations for periodic inspection of process line integrity.
• Mining — leaching and SX-EW circuits: Retention with visual verification in concentrated H₂SO₄ and electrowinning electrolyte lines. Visual verification of flow without disassembly significantly reduces personnel exposure time to aggressive fluids during routine inspections.
• Pharmaceutical and high-purity processes: Visual verification of the absence of bubbles and particles in synthesis fluids — the sight glass allows confirming the visual quality of the fluid without the need for manual sampling that would involve opening the line.

For the full range of anti-corrosive valves, see PFA anti-corrosive valves category →
