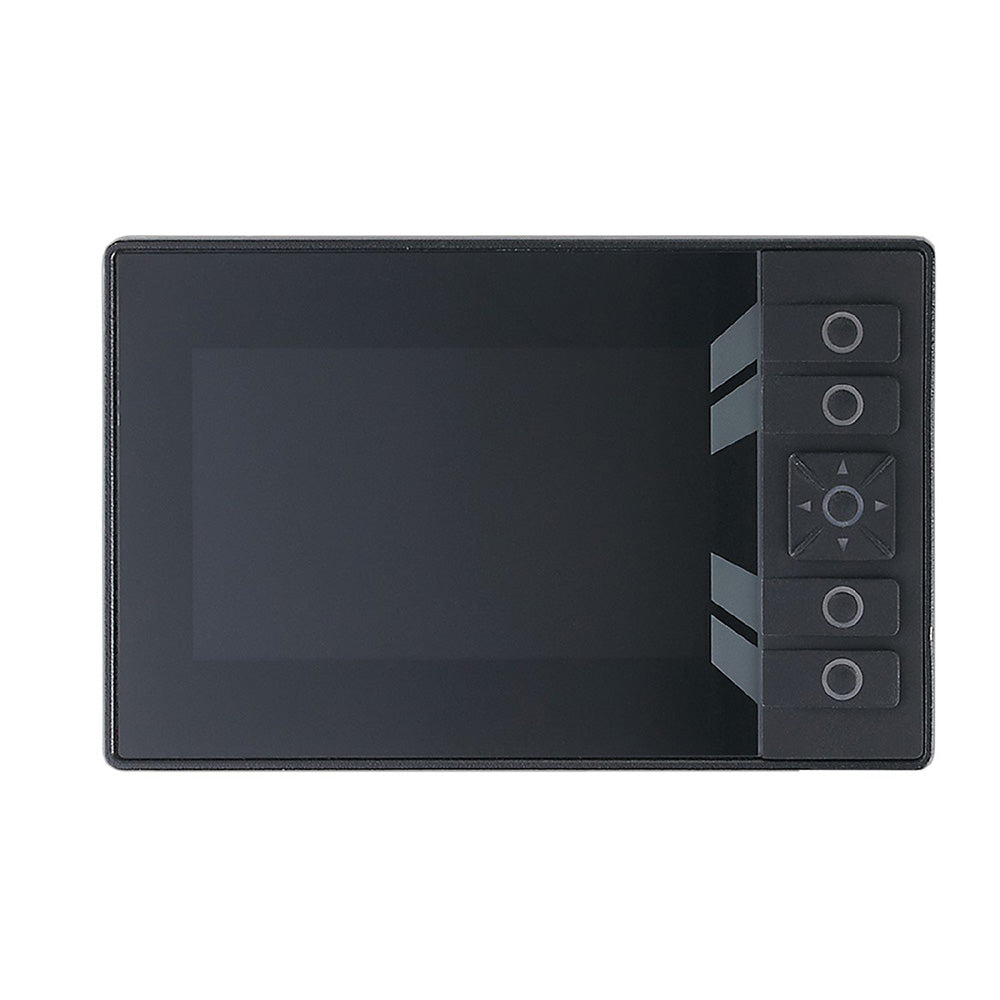

5" graphical display with programmable PLC for mobile machine control

Only left1
SKU: PCHMI01
$23,643.00 MXN
Extent

5" graphic display with programmable PLC for mobile machine control

Cematic's mobile machine HMI display is a robust and versatile solution for optimizing operation, monitoring, and diagnostics in demanding mobile applications. Thanks to its intuitive interface and programming according to IEC 61131-3 with CODESYS 3.5, it allows real-time visualization of critical parameters. This significantly improves operator-equipment interaction in high-demand environments.

Furthermore, this HMI display for mobile machines is designed for severe environments, offering high resistance to vibrations, dust, and humidity. As it is compatible with CAN and Ethernet protocols, it facilitates integration with electronic controllers and industrial networks. Consequently, this translates into greater operational efficiency, safety, and productivity.

Features

  • 64-bit architecture with integrated PLC.
  • 5" color display with backlit RGB buttons and tactile feedback.
  • Programmable according to IEC 61131-3 with CODESYS 3.5.
  • High-performance Ethernet and CAN interfaces.
  • USB port for data logging, compatible with Ethernet cameras.

Main applications

1. Mobile and off-highway machinery Allows central control of hydraulic functions, engine, and auxiliary systems in agricultural machinery (tractors, sprayers, harvesters), construction machinery (excavators, loaders, compactors), and forestry and mining equipment.

2. Special and utility vehicles Thanks to its compatibility with CAN systems, it manages lighting, actuators, and sensors in municipal vehicles, specialized trucks, and urban cleaning equipment.

3. Hydraulic and electro-hydraulic system control As it integrates a programmable PLC, it allows proportional valve control, pump management, and actuator synchronization with precision and reliability.

4. Human-machine interface (HMI) In addition to its color display, it integrates physical control elements for visualization of operating parameters, fault diagnosis, and field configuration adjustments.

5. Integration into CAN networks (CANopen / J1939) Due to its compatibility with CANopen and J1939, it facilitates communication with ECUs, integration with distributed I/O modules, and real-time network monitoring.

Should you require technical guidance for your specific application, our team can advise you free of charge.
