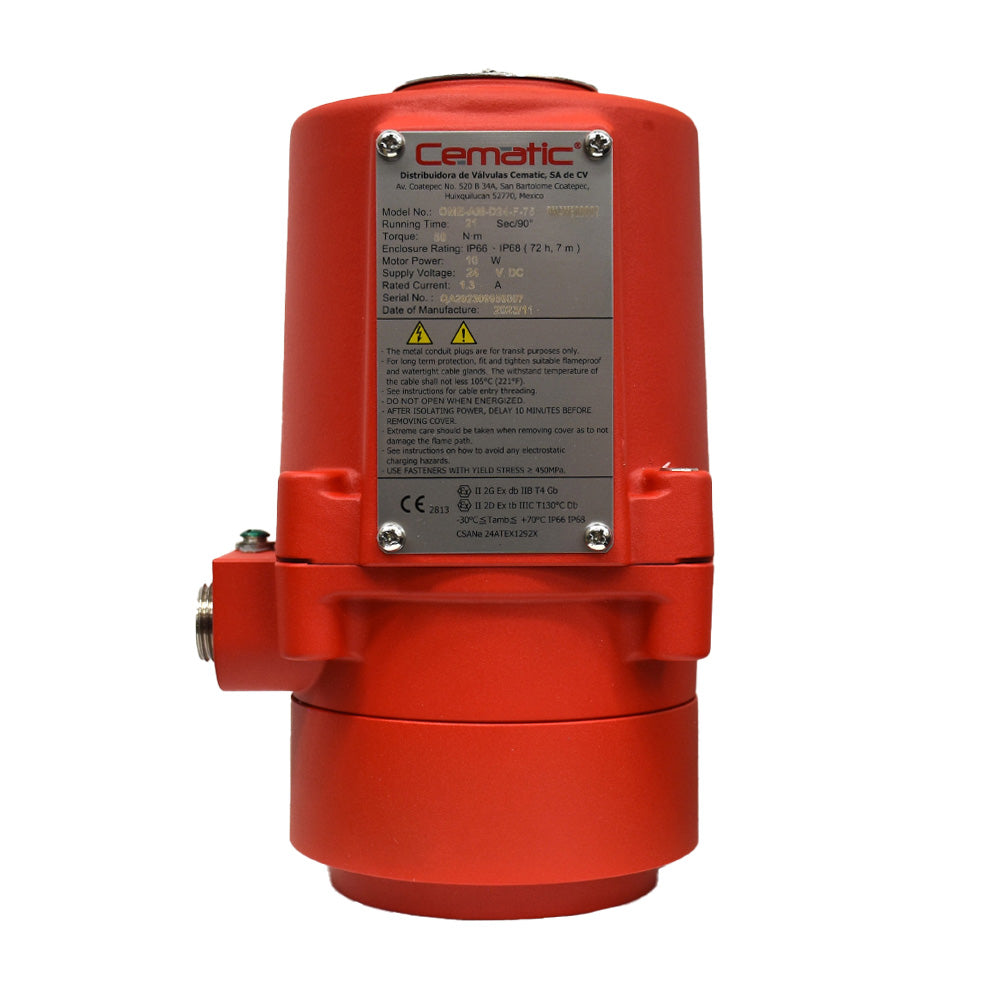

Explosion-Proof Electric Valve Actuator — 1/4 Turn, ISO5211, IP66/IP68, ATEX / IECEx / CSA, 35 to 1500 NM
Cematic's explosion-proof electric valve actuator is the standard device for automating ball and butterfly valves in industrial areas classified as hazardous. Its flame- and combustible dust-proof enclosure also ensures that any internal ignition is contained within the actuator body.
Therefore, it cannot trigger an explosion in the external atmosphere. It is also certified under ATEX, IECEx, and CSA. It thus complies with international standards for Zones 1, 2, 21, and 22 with Group IIA/IIB gases and Group IIIC dusts. It is also available in torques from 35 to 1500 NM and in On-Off or Modulating modes.
Unlike the standard electric actuator in the OM range, this model does not include spring return. Therefore, in the event of a loss of power, the valve remains in its last commanded position.
However, when the process requires automatic closure upon electrical failure, the fail-safe spring-return actuator assembly must be specified. See explosion-proof fail-safe actuator →
Why an explosion-proof actuator — and when it is necessary
A standard electric actuator is not suitable for classified areas because its internal electrical components can produce sparks or heat up above the ignition temperature of the environment. The explosion-proof electric actuator, on the other hand, is built with specific protection measures for classified areas:
- Flameproof enclosure (Ex db): The actuator body is designed to contain any internal ignition. The enclosure joints and threads are also machined with specific tolerances that prevent flame propagation to the outside. Therefore, even if an internal spark occurs, the explosion is contained within the actuator body.
- Protection against combustible dust (Ex tb): The IP66/IP68 enclosure also prevents combustible dust from coming into contact with the internal electrical components. Furthermore, the maximum surface temperature (T130°C) is below the ignition temperature of the most common combustible dusts.
- Self-locking gear system: The gear system also maintains the valve position without continuous power. Therefore, the standby power consumption is zero. Consequently, standby power consumption is zero, and no heat is generated by friction in the transmission system.
Classified areas where this actuator applies
This actuator's ATEX/IECEx certification qualifies it for the following areas, depending on the risk level of the installation:
- Zone 1 — occasional presence of explosive gases: Areas where an explosive gas atmosphere may be present occasionally during normal operation. Therefore, it is the most common zone in refining, gas plants, and petrochemical processing. Thus, the actuator meets Zone 1 requirements with Group IIB gases.
- Zone 2 — unlikely presence of explosive gases: Areas where an explosive atmosphere is unlikely under normal conditions. However, it may occur under abnormal or maintenance conditions. The actuator also meets Zone 2 requirements without additional restrictions.
- Zone 21 and Zone 22 — combustible dusts: Areas with the presence of suspended combustible dusts. The Ex tb IIIC T130°C Db certification also covers Group IIIC dusts. Therefore, it is the correct actuator for metal dust, coal, flour, and sugar plants.
On-Off vs. Modulating in hazardous areas
This actuator is also available in two control modes depending on the process requirements in the classified area:
- On-Off: The actuator operates in two positions — fully open or fully closed — by an electrical signal from the control system. Therefore, it is the standard option for isolation, shutoff, and diversion systems in hazardous areas. The control signal is digital, so it does not require signal converters between the safe area and the classified area.
- Modulating: The actuator positions the valve proportionally to the 4-20 mA signal. Consequently, it is the correct option for PID control loops within classified areas. It also includes 4-20 mA position feedback for verification from the control system.
Torque selection
The actuator torque must also be greater than the valve's operating torque at the maximum working pressure. The available range also covers small ball valves to large-diameter butterfly valves. The available range is described below:
- OME-1 — 35 NM: For ball and butterfly valves in diameters from 1/2" to 2". It also includes a manual override lever. Therefore, it is the entry-level torque in the Ex-Proof range for small-diameter installations.
- OME-A / OME-AM — 50 NM: For valves in diameters from 2" to 3". The OME-A does not include manual override; the OME-AM, on the other hand, includes an integrated lever. It is also the most compact torque in the range for intermediate diameters.

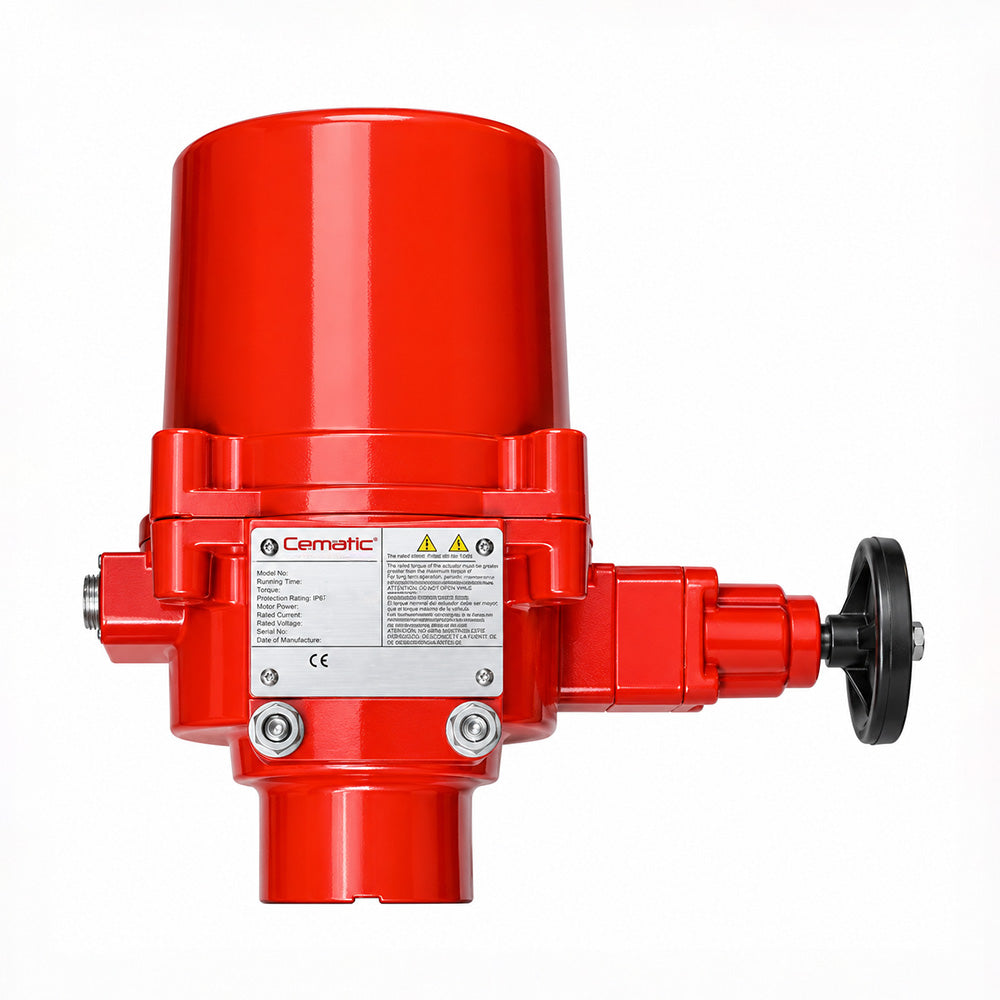

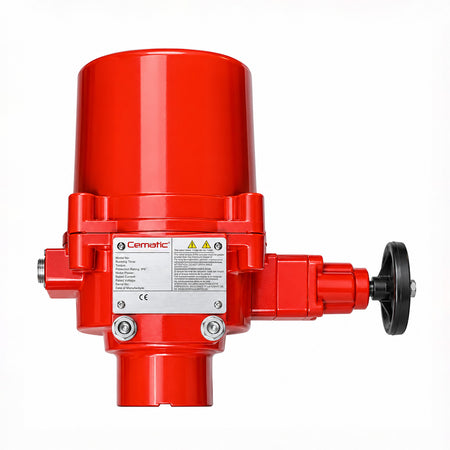

- OME-2 / OME-3 — 90 to 150 NM: For valves in diameters from 3" to 6" or valves requiring more torque. They also include a manual override handwheel and adjustable mechanical stops.
- OME-4 to OME-6 — 400 to 650 NM: For butterfly valves from 6" to 12" or valves with high differential pressure. They are also the standard torques in large-diameter industrial process lines.
- OME-7 / OME-8 — 1000 to 1500 NM: For the highest torque applications in large-diameter or high-pressure valves. Therefore, they cover the most demanding industrial services in the Ex-Proof range.
Technical specifications
| Parameter | Value |
|---|---|
| Actuator type | Explosion-proof electric — without spring return |
| Movement type | 1/4 turn (90°) |
| Control modes | On-Off / Floating (standard) | Modulating (option) |
| Available torques | 35 / 50 / 90 / 150 / 400 / 500 / 650 / 1000 / 1500 NM |
| Available voltages | 12 VDC / 24 V AC / 24 V DC / 110-120 V AC / 220-240 V AC |
| Housing | Aluminum alloy with dry powder coating |
| Enclosure protection | IP66 / IP68 (7 m / 72 hrs) |
| Duty cycle | 30% |
| Ambient temperature | -30 °C to +70 °C |
| Relative humidity | 30% to 95% |
| Conduit entries | 1/2" NPT (standard) |
| Mounting | ISO5211 |
| Motor insulation class | Class F |
| Motor thermal protection | Integrated |
| Position indicator | Mechanical visual indicator included in all models |
| Manual override | Lever (OME-1, OME-AM) / Handwheel (OME-2 to OME-8) / No override (OME-A) |
Hazardous area certifications
| Standard | Marking | Ambient temperature |
|---|---|---|
| ATEX (European Union) | II 2 GD Ex db IIB T4 Gb / Ex tb IIIC T130°C Db | -30°C to +70°C |
| IECEx (International) | Ex db IIB T4 Gb / Ex tb IIIC T130°C Db | -30°C to +70°C |
| CSA (North America) — Zone | AEx/Ex Class I Zone 1 db Groups IIA, IIB T4 | -30°C to +70°C |
| CSA (North America) — Division | Class I Div. 1 Groups C, D T4 / Class II Div. 1 Groups E, F, G T130°C | -30°C to +70°C |
Applications of the explosion-proof electric actuator
Petrochemical and Refining Industry
The explosion-proof electric actuator is the standard component for valve automation in refining and petrochemical processing plants. The ATEX/IECEx/CSA certifications also qualify it for the most common classified areas in that sector.
Therefore, no additional safety barriers are required in the control signal. Thus, it is the correct actuator for hydrocarbon shutoff and regulation systems in Zones 1 and 2.
Natural Gas and LPG Plants
In natural gas, LPG, and biogas installations, this actuator also controls valves in potentially explosive atmospheres with full regulatory safety. Its certification for Group IIB gases also covers natural gas, propane, and the most common solvent vapors in those installations.
Consequently, it is the reference actuator in gas compression, distribution, and storage stations.
Chemical Industry with Flammable Fluids
In chemical synthesis, storage, and handling plants for solvents and flammable products, this actuator enables valve automation in classified areas. The Modulating version is also the correct option in flow control loops where continuous regulation is a requirement.
Therefore, it is the most versatile explosion-proof actuator for the chemical industry. Therefore, it is the most versatile explosion-proof actuator for the chemical industry.
Mining and Combustible Dust Processes
In mineral processing plants and the production of flour, sugar, and other combustible dusts, the Ex tb IIIC T130°C Db certification also qualifies this actuator for Zones 21 and 22. Furthermore, its maximum surface temperature of 130°C is below the ignition temperature of Group IIIC dusts.
Consequently, it is the standard actuator in installations where protection against combustible dusts is a plant regulatory requirement.
Power and Cogeneration Plants
In generation plants using fossil fuels or biomass, this actuator also automates valves in areas with the presence of flammable vapors or gases. Its range up to 1500 NM also covers large-diameter valves in power process lines.
Therefore, it is suitable for steam, boiler water, and fuel line control in cogeneration plants with classified areas.
For the full range of explosion-proof actuators, see Ex-Proof actuator collection →
