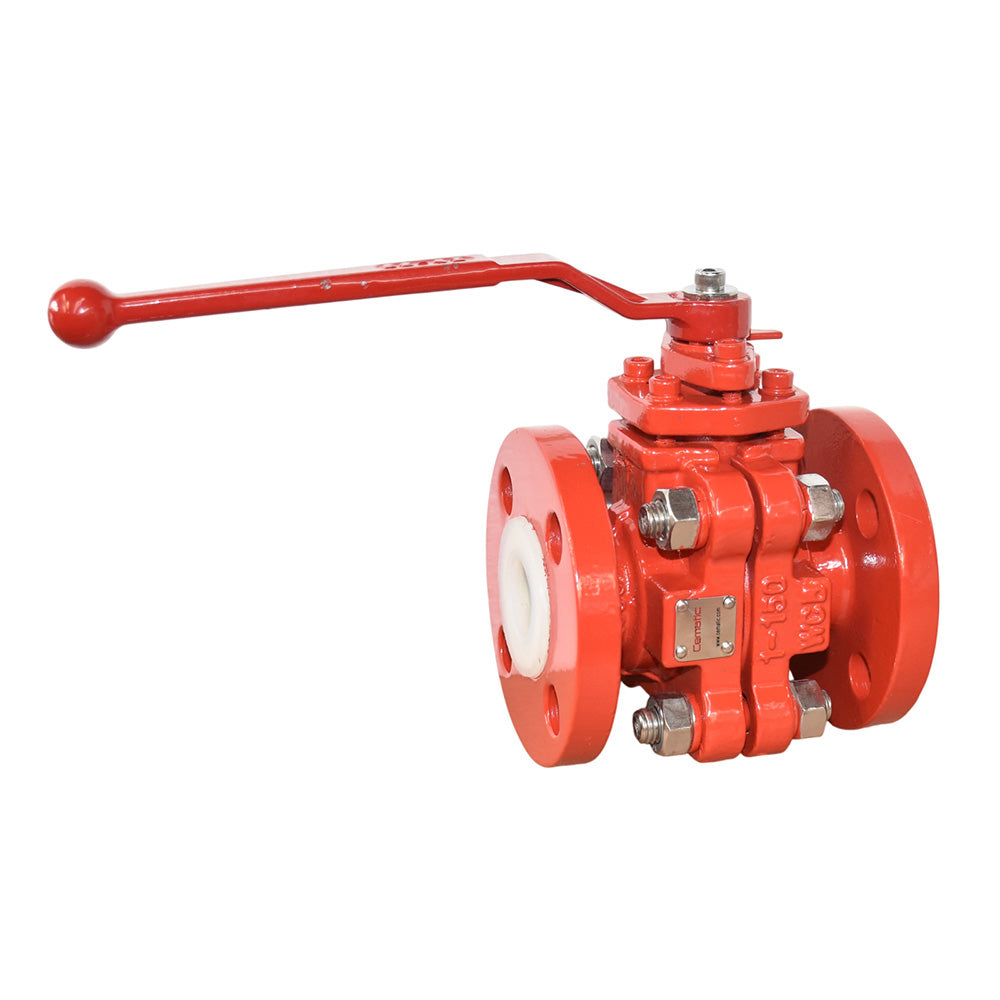

Anti-corrosive PFA-Lined Ball Valve ANSI 150 Flanges
The Anti-corrosive PFA-Lined Ball Valve ANSI 150 is the solution for corrosive processes that demand maximum chemical resistance and reliable sealing. Thanks to its internal PFA (fluorinated polymer) lining and WCB steel body, it combines mechanical and chemical resistance in a single piece of equipment.
Furthermore, its design complies with API 6D and ISO 5211 standards. Therefore, it guarantees compatibility with pneumatic or electric actuators for total process automation.
Specifications
- Design | Mounting: API 6D | ISO 5211
- Face to Face: ANSI/ASME B16.10
- Flanges: ANSI/ASME B16.5 Class 150 LB
- Inspection and Testing: API 598
- Body: A216 WCB Steel
- Internal Lining: PFA (fluorinated polymer)
- Working Temperature: -20°C to 200°C
- Maximum Pressure: 285 – 290 psi @ 100°F (38°C)

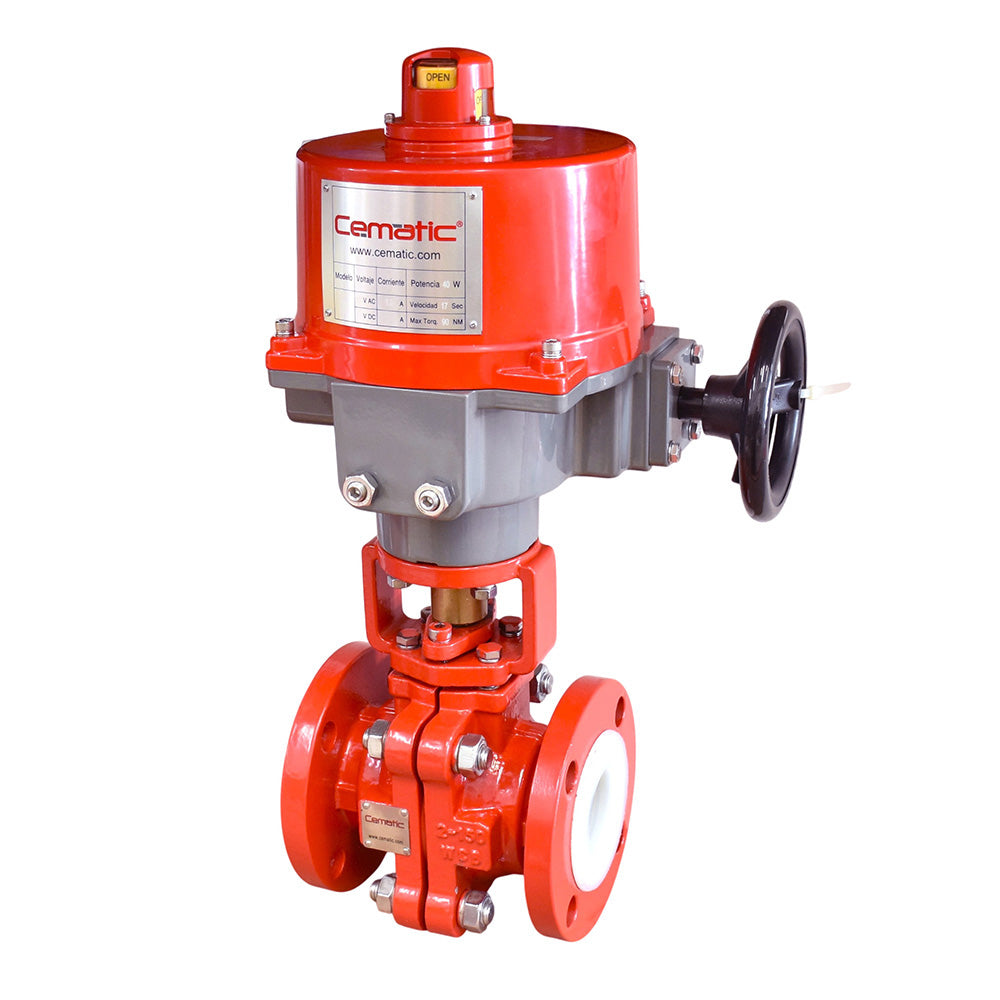

- Actuation: Manual, pneumatic, or electric
- Available Sizes: 1" to 4"
Main Applications
The Anti-corrosive PFA-Lined Ball Valve ANSI 150 is applied in a wide variety of industries where the control of aggressive fluids is critical. Thanks to its PFA lining and WCB body, it solves the most demanding flow control challenges in the following sectors:
Chemical and Petrochemical Industry: Handles concentrated acids, alkalis, and solvents that damage conventional metallic valves. In addition, its PFA coating prevents fluid contamination.
Chlorine, Oxidizing, and Bleaching Processes: Transports chlorine, hypochlorite, and peroxides with total sealing. Therefore, it is the preferred option in lines that require high corrosion resistance.
Pharmaceutical and Food Industry: Ensures purity and absence of contamination from metallic contact. Likewise, its smooth surface facilitates cleaning and regulatory compliance.
Semiconductors and Ultrapure Water: Controls fluids of extreme purity thanks to the chemical inertness of PFA. Consequently, it reduces the risk of contamination in high-precision processes.
Water and Corrosive Effluent Treatment: Handles chemical neutralization or recovery solutions without equipment deterioration. Additionally, it extends the useful life compared to metallic alternatives.
Paper, Inks, Pigments, and Coatings: Its smooth internal surface prevents scaling. Therefore, it improves process efficiency and reduces maintenance time.
Sticky or Crystallizing Fluids: The internal lining prevents solid adherence. In this way, it facilitates cleaning and ensures continuous operation without obstructions.
