Within the world of butterfly valves, there's a purchasing decision that often causes confusion: wafer or lug? At first glance, they may look very similar, and in fact, they share the same operating principle. However, their constructive differences have a direct impact on how they are installed, in which systems they can be used, and how much they cost in the long run.
If you are evaluating which type of butterfly valve is most suitable for your project, this article explains everything you need to know, without unnecessary technical jargon.
What is a butterfly valve?
Before delving into the differences, it's worth recalling how a butterfly valve works. It is a quarter-turn valve that regulates or stops flow using a circular disc mounted on a central shaft. By rotating 90°, the disc moves from a fully open position (parallel to the flow) to a fully closed position (perpendicular to the flow).
They are lightweight, compact, and economical compared to other valve types of the same diameter, making them very popular in industrial, water, HVAC, and chemical process installations.
What is the difference between a wafer and a lug valve?
The difference is not in how they operate, but in how they are attached to the piping.
Wafer type butterfly valve
The wafer valve is installed between two pipe flanges, without its own threads. It is the tightening of the bolts that pass through both flanges that holds the valve in place. This makes it very compact and lightweight, but it also means that it cannot support the weight of the piping itself or function as an end-of-line component.
Key features:
- Thin body with no lugs or threads
- Secured by external bolts passing through both flanges
- Lower weight and cost compared to the lug version
- Requires both sides of the pipe to always be connected
- Ideal for closed and continuous systems
Lug type butterfly valve
The lug valve incorporates threaded inserts (lugs) in the valve body, distributed around its perimeter. Each lug receives an independent bolt from each flange, allowing the valve to be connected individually to each side of the piping.
This design gives it a fundamental characteristic: it can act as an end-of-line closure point, allowing one side of the piping to be removed without needing to drain or disconnect the other side.
Key features:
- Body with threaded lugs around the perimeter
- Each flange connects independently
- Heavier and more expensive than the wafer version
- Allows isolation and removal of one section without affecting the other
- Ideal for systems requiring sectional maintenance

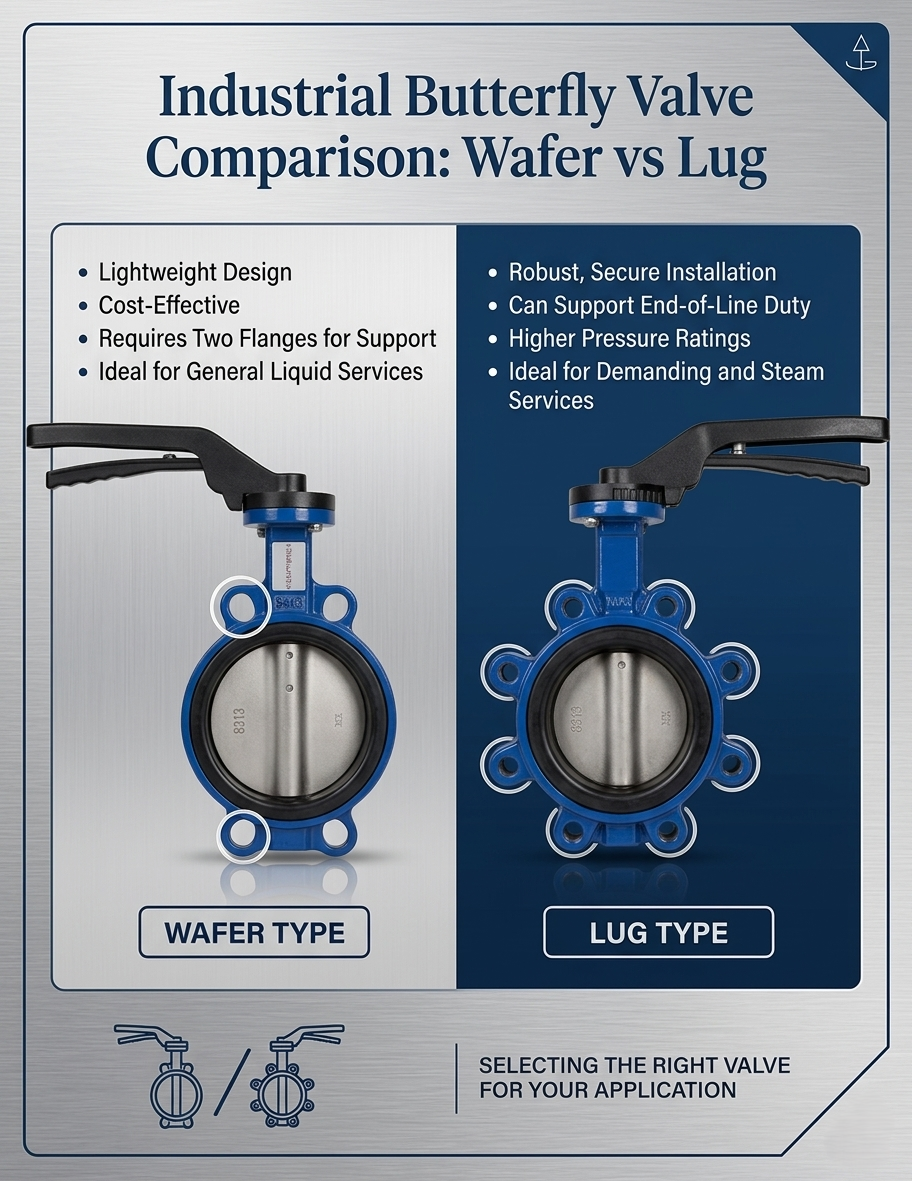

Direct comparison: wafer vs. lug
| Characteristic | Wafer | Lug |
|---|---|---|
| Attachment | External bolts between flanges | Own threaded lugs |
| Weight | Lighter | Heavier |
| Cost | Lower | Higher |
| End-of-line function | No | Yes |
| Unilateral removal | No | Yes |
| Space required | Minimum | Slightly more |
| High pressures | Limited | Greater capacity |
| Typical applications | Closed continuous systems | Systems with sectional maintenance |
In which applications is each type used?
When to choose a wafer valve
The wafer valve is the most common choice when working with systems where frequent removal of individual sections is not anticipated. Its low weight and cost make it particularly attractive in large-scale projects where many units are installed.
Typical applications:
- Potable water and process water systems in industrial plants
- HVAC and climate control installations in commercial buildings
- Irrigation and water distribution systems
- Cooling lines in manufacturing plants
- Systems with clean fluids at low to medium pressure
An important consideration: when installing a wafer valve, it is necessary to ensure that the flanges on both sides are perfectly aligned, as the valve relies on this uniform tightening for proper sealing.
When to choose a lug valve
The lug valve becomes the right choice when the system design requires operational flexibility. Its ability to function as an end-of-line closure makes it indispensable in certain configurations.
Typical applications:
- Systems that require maintenance by sections without shutting down the entire plant
- Connections at pipe ends or discharge points
- Installations with equipment that needs to be replaced or inspected periodically
- Higher pressure systems where more robust anchoring is needed
- Food, pharmaceutical, or chemical industries where zonal maintenance is frequent
Installation considerations
In addition to choosing the type, there are other factors to consider during installation:
Flange compatibility: Both wafer and lug valves must be compatible with your installation's flange standard (ANSI, DIN, JIS, etc.). It is crucial to verify this before purchase.
Body and disc material: Both types are available in cast iron, ductile iron, stainless steel, and other alloys. The choice of material depends on the fluid handled, temperature, and operating pressure.
Seat type: The elastomer seat (EPDM, NBR, Buna-N, Viton) determines chemical compatibility with the fluid. An incorrect seat can degrade quickly and compromise sealing.
Actuation: Both types can be equipped with pneumatic or electric actuators for automation. If future automation is considered, it is advisable to choose a compatible body from the outset.
Cost vs. long-term value
In terms of initial price, the wafer valve will always be more economical for the same diameter and material. However, the equation changes when considering the total operating cost.
In systems where sectional maintenance is frequent, using lug valves can represent significant savings in plant downtime. Having to stop an entire production line to intervene in a section that could have been isolated individually has a real operating cost that often exceeds the price difference between the two types of valves.
The recommendation is to evaluate not only the component cost, but also the cost of operation throughout the installation's life cycle.
Conclusion: the right choice depends on your system
There is no universal answer. The wafer butterfly valve is the ideal solution for continuous systems where cost and weight are priorities. The lug valve is the right choice when operational flexibility and the ability to isolate sections without interrupting the entire installation are needed.
At Válvulas Cematic, we offer both lines in multiple materials, sizes, and actuation configurations. If you have questions about which specification is most suitable for your project, our technical team can guide you before your purchase.
