Imagine your PLC sends a signal to open a valve to 60% — but you don't know if it actually reached that position. Maybe it reached 55%. Maybe 70%. Or maybe the actuator failed and the valve is still closed. Without position feedback, your control system operates blindly. That is exactly the problem a digital positioner solves.

In this technical guide, we explain what a digital positioner is, how it works, how it differs from a contact positioner, and why its adoption in Mexican industrial plants is growing alongside Industry 4.0 projects.

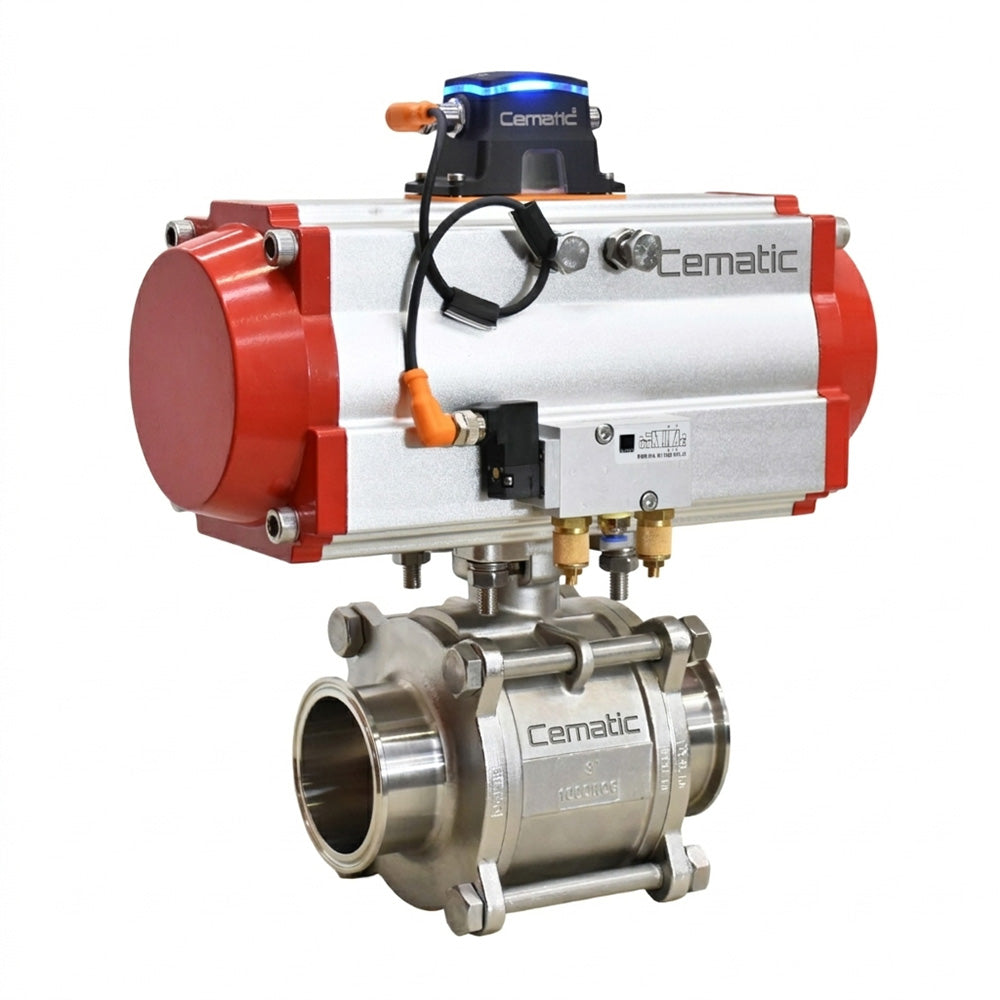

What is a digital valve positioner?

A digital positioner is a control instrument that receives a command signal — typically 4 to 20 milliamps — from a PLC, DCS, or SCADA system, and converts it into the exact air pressure needed to move the pneumatic actuator to the required position. Simultaneously, it measures the actual stem position and reports it back to the control system, closing the loop.

The word 'digital' refers to the instrument containing an internal microprocessor that processes the signal, executes the PID control algorithm, performs self-calibration, and stores operating data — capabilities that analog or contact positioners do not have.

Main components of a digital positioner:

·       Position sensor (potentiometer or non-contact magnetic sensor) that measures the actual stem angle

·       Microprocessor with PID algorithm for continuous position correction

·       I/P transducer that converts the electrical signal into air pressure to the actuator

·       Local LCD display showing real-time opening percentage

·       HART, Profibus-PA, or Foundation Fieldbus communication port for integration with higher-level systems

How does it work in a real control system?

The control cycle of a digital positioner occurs in milliseconds and repeats continuously while the valve is in operation:

1.     1.  The PLC sends a 4–20 mA signal representing the opening setpoint (e.g., 12 mA = 50%).

2.     2.  The positioner receives the signal and calculates the air pressure needed to achieve that position.

3.     3.  The I/P transducer adjusts the airflow to the pneumatic actuator.

4.     4.  The position sensor measures the actual angle achieved by the stem.

5.     5.  If there is a difference between the setpoint and the actual position, the microprocessor automatically corrects it.

6.     6.  The actual position is reported back to the PLC as a feedback signal.

This closed loop ensures that the valve is always exactly where the process requires it — regardless of air pressure variations, actuator wear, or temperature changes.

Digital positioner vs. contact positioner vs. no positioner

This is the comparison that generates the most questions among process engineers and automation managers:

Key Advantages of the Digital Positioner in Your Plant

1. More Precise Process Control

In processes where flow, pressure, or temperature must be maintained within narrow ranges — such as in chemical reactors, pasteurizers, or dosing lines — the difference between a 48% and 52% opening can mean out-of-spec product. The digital positioner eliminates this uncertainty.

2. Predictive Maintenance and Reduced Downtime

The digital positioner internally records the number of operating cycles, actuator response time, and deviations between the command and the actual position. When response time begins to degrade, the control system can schedule maintenance before a failure occurs — instead of reacting after downtime.

3. Native Integration with Industry 4.0

Through HART or Profibus-PA, the digital positioner converts each valve into a data node within your industrial network. Platforms such as Siemens MindSphere, Rockwell FactoryTalk, or any SCADA system can consume this data for remote monitoring, performance analysis, and valve digital twin.

4. Measurable Return on Investment

Although the initial cost of a digital positioner is higher than that of a contact positioner, the savings from unscheduled downtime, quality rejections, and corrective maintenance time typically recoup the investment within the first year of operation in continuous processes.

In which industries is the digital positioner used?

·       Oil & Gas and petrochemical:

Crude oil, gas, and condensate flow control. Integration with plant DCS systems.

·       Food and beverage industry:

Ingredient dosing, pressure control in CIP/SIP, in-line filling.

·       Pharmaceutical industry:

Opening traceability required by GMP. Automatic position recording for audits.

·       Water treatment and municipal plants:

Flow regulation in filters, reverse osmosis, and network distribution.

·       Manufacturing and continuous processes:

Control of steam, cooling water, and process fluids in production lines.

Frequently asked questions

❓  Does the digital positioner work with any brand of PLC?

Yes. The standard 4–20 mA signal with HART protocol is compatible with any brand of PLC or DCS — Siemens, Allen-Bradley, Schneider, Mitsubishi, among others. You only need an analog output and an analog input on your I/O card.

❓  Can a digital positioner be installed on a valve I already have in the plant?

In most cases, yes. The digital positioner is mounted on the existing pneumatic actuator using an ISO 5211 bracket. It is important to verify the compatibility of the mounting pattern and the torque range. At Cematic, we assess compatibility before confirming supply.

❓  How much compressed air does a digital positioner consume?

The air consumption of a digital positioner is significantly lower than that of an analog pneumatic positioner, as the microprocessor continuously optimizes the necessary pressure. This reduces the operating cost of the compressed air system in the plant.

❓  What is the difference between HART and Profibus-PA in a digital positioner?

HART allows digital communication over the same 4–20 mA cable — it is the simplest option for upgrading existing installations. Profibus-PA is a dedicated fieldbus with higher speed and diagnostic capabilities, ideal for new plants with distributed control architecture. Both protocols are compatible with our Cematic positioners.

❓  What happens if the 4–20 mA signal fails?

The digital positioner has a configurable fail-safe position: it can maintain the last known position, fully close, or fully open as required by process safety. This configuration is defined during commissioning.

Discover our digital positioners

At Cematic, we supply digital positioners compatible with single and double-acting pneumatic actuators, for ball, butterfly, globe, and control valves. We deliver the complete valve-actuator-positioner assembly, tested and with a commissioning data sheet.
